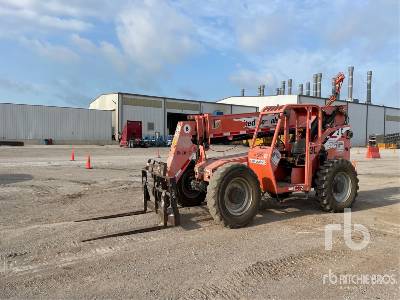

JLG 8042 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.6ft in
C
Overall Height
8.31ft in
D
Wheelbase
10ft in
Width
8.31ft in
Overall Length
19ft in
Lift
F
Max Lift Height
41ft in
Max Load At Max Reach
2200lb
Load Center
2ft in
Max Lift Capacity
8000lb
Max Load At Max Height
6000lb
Specifications
Engine
Engine Model
QSF3.8L Tier 4 Final
Gross Power
110hp
Power Measured @
1500rpm
Capacities
Fuel Tank
35gal
Operational
Drawbar Pull
25000lb
Tire Size
370/75-28
Performance
Maximum Lift
15sec
Maximum Lower
13sec
Maximum Telescope In
14.2sec
Maximum Telescope Out
16.5sec
Maximum Travel
19mph
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Weights
Operating Weight
27100lb
Hydraulic
Pump Type
Var Load Sensing Piston
Axles
Front
High Bias, Limited Slip
Rear
Oscillating
Brakes
Brakes Type
Wet Multi-Disc
