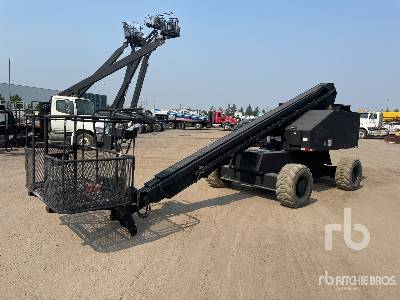

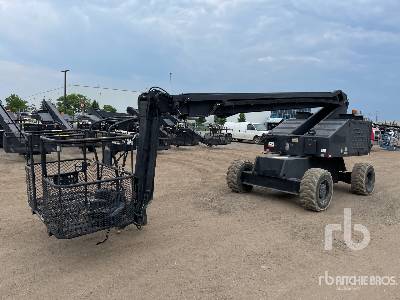

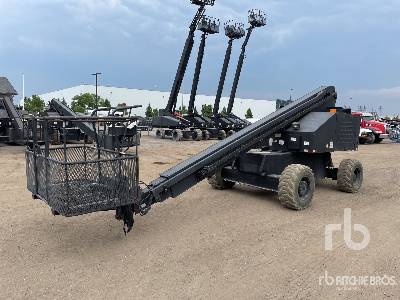

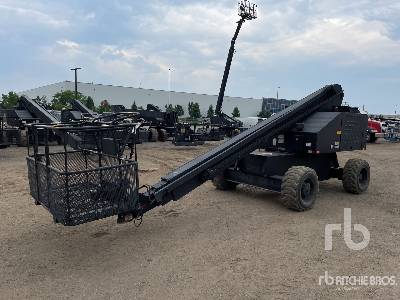

JLG M400AJPN Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
22ft in
B
Overall Width
4.12ft in
D
Wheelbase
6.7ft in
E
Ground Clearance
5in
Overall Height
6.6ft in
Tire Size
22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R)
Up And Over Height
21.6ft in
Platform Dimension A
2.6ft in
Platform Dimension B
4ft in
Tailswing Radius
4ft in
Platform
F
Max Platform Height
40ft in
G
Max Horizontal Reach
30.9ft in
Specifications
Electrical System
Batteries
8 x 6V, 370 amp-hr
Engine
Engine Make
Kubota
Gross Power
6.7hp
Fuel Tank Capacity
4gal
Fuel Type
Diesel
Operational
Operating Weight
15200lb
Hydraulic System Fluid Capacity
4gal
Performance
Drive Speed
3mph
Swing
360degrees
Swing Type
Non-Continuous
Gradeability
30%
Platform Capacity
500lb
Jib - Range Of Articulation
144degrees
Turning Radius - Outside (Axles Retracted)
10.4ft in
