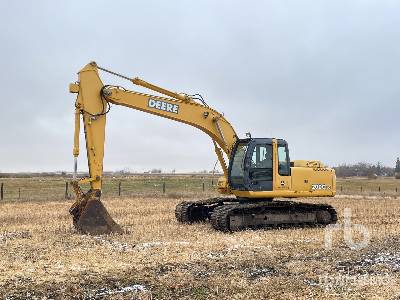

John Deere 2554 Road Builder Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
33.99ft in
C
Shipping Height Of Unit
12.01ft in
I
Max Cutting Height
32.42ft in
K
Max Reach Along Ground
33.67ft in
M
Max Digging Depth
21.99ft in
Boom/Stick Option (Hex) 1
standard arm 9\'9\" (2960mm)
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
34.42ft in
I
Max Cutting Height
34.49ft in
C
Shipping Height Of Unit
12.01ft in
K
Max Reach Along Ground
35.14ft in
M
Max Digging Depth
23.07ft in
Boom/Stick Option (Hex) 2
10\'2\" (3100mm) Arm
Dimensions
E
Ground Clearance
2.01ft in
G
Height To Top Of Cab
11.91ft in
B
Width To Outside Of Tracks
11.26ft in
H
Tail Swing Radius
10.67ft in
Removal Counterweight Clearance
4.34ft in
Undercarriage
F
Track Gauge
8.93ft in
N
Shoe Size
27.96in
Ground Pressure
7.1psi
Drawbar Pull
44420lb
Number Of Track Rollers Per Side
9
Number Of Carrier Rollers Per Side
2
Max Travel Speed
3.42mph
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H
Net Power
177.1hp
Power Measured @
2100rpm
Max Torque
533.3lb ft
Displacement
414cu in
Operational
Operating Weight
64500.7lb
Fuel Capacity
269gal
Cooling System Fluid Capacity
6.3gal
Hydraulic System Fluid Capacity
34.4gal
Engine Oil Capacity
5.1gal
Operating Voltage
24V
Swing Drive Fluid Capacity
1.3gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
115.8gal/min
Swing Mechanism
Swing Speed
12.6rpm
Swing Torque
51639lb ft
