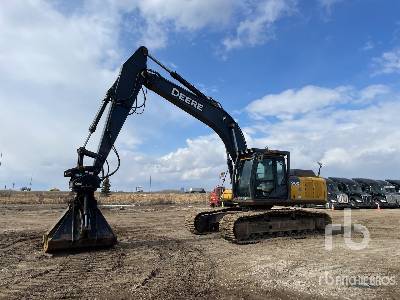

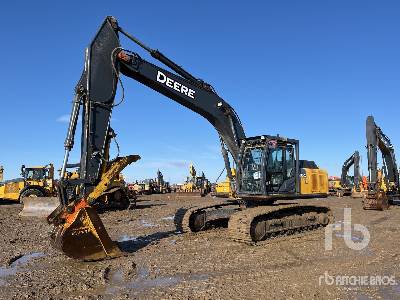

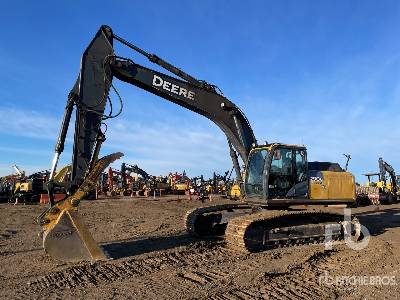

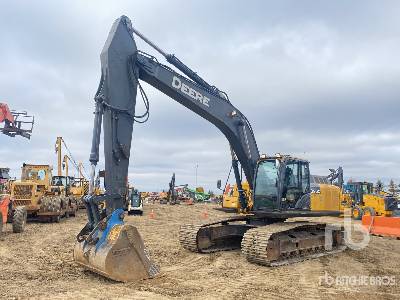

John Deere 290G LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
34.59ft in
C
Shipping Height Of Unit
10.41ft in
I
Max Cutting Height
33.67ft in
J
Max Loading Height
23.99ft in
K
Max Reach Along Ground
34.52ft in
L
Max Vertical Wall Digging Depth
21.26ft in
M
Max Digging Depth
23.73ft in
Boom/Stick Option (Hex) 1
Arm Length 3.11 m (10 ft. 2 in.)
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
34.75ft in
I
Max Cutting Height
34.32ft in
C
Shipping Height Of Unit
10.86ft in
J
Max Loading Height
24.68ft in
K
Max Reach Along Ground
36.42ft in
L
Max Vertical Wall Digging Depth
23.13ft in
M
Max Digging Depth
25.86ft in
Boom/Stick Option (Hex) 2
Arm Length 3.75 m (12 ft. 4 in.)
Dimensions
E
Ground Clearance
1.68ft in
G
Height To Top Of Cab
10.21ft in
B
Width To Outside Of Tracks
11.13ft in
D
Length Of Track On Ground
13.29ft in
H
Tail Swing Radius
10.31ft in
Removal Counterweight Clearance
3.88ft in
Undercarriage
N
Shoe Size
32in
Number Of Shoes Per Side
48
Ground Pressure
6.04psi
Max Travel Speed
3.4mph
Number Of Track Rollers Per Side
8
Number Of Carrier Rollers Per Side
2
Drawbar Pull
55336lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
PowerTech™ PVX 6.8 L
Net Power
187.8hp
Power Measured @
2100rpm
Displacement
415cu in
Aspiration
Turbocharged
Operational
Operating Weight
66337.1lb
Fuel Capacity
132.1gal
Cooling System Fluid Capacity
7.1gal
Hydraulic System Fluid Capacity
63.5gal
Engine Oil Capacity
6.5gal
Operating Voltage
24V
Swing Drive Fluid Capacity
2.3gal
Alternator Supplied Amperage
100amps
Hydraulic System Relief Valve Pressure
565.7psi
Hydraulic Pump Flow Capacity
9gal/min
Swing Mechanism
Swing Torque
56895.6lb ft
Swing Speed
12.6rpm
Buckets
Reference Bucket Capacity
1.4yd3
Minimum Bucket Capacity
1yd3
Maximum Bucket Capacity
2.1yd3
