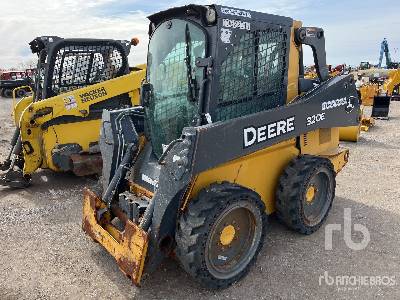

John Deere 320 Skid Steer Loader
Dimensions
Dimensions
Length With Bucket
10.49ft in
Width Over Tires
5.82ft in
Ground Clearance
19.2in
Height To Top Of Cab
6.41ft in
Wheelbase
3.53ft in
Length W/O Bucket
8.51ft in
Clearance At Max Lift And Dump
7.52ft in
Reach At Max Lift And Dump
28.12in
Turning Radius From Center - Inc Bucket
78.9in
Dimensions - Reach Boom - 5.7 M (18'8"); R2.9 (9'6") Stick
Ground Clearance
1.5ft in
Tail Swing Radius
9.31ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4024T
Gross Power
66hp
Net Power
62hp
Power Measured @
2800rpm
Aspiration
Turbocharged
Displacement
269cu in
Bore
4in
Stroke
5in
Net Power - Sae J1349
162hp
Gross Power - Sae J1995
164hp
Engine Model
Cat C4.4 ACERT
Net Flywheel Power
162hp
Engine Rpm - Operation
1650rpm
Engine Rpm - Travel
1800rpm
Operational
Operational Weight
6435lb
Fuel Capacity
16gal
Max Speed
6.8mph
Tire Size
12x16.5 10 PR SKS
Operating Voltage
12V
Alternator Supplied Amperage
70amps
Loader
Breakout Force
5500lb
Operating Load Rating
1950lb
Tipping Angle
3900degrees
Bucket Capacity
0.6yd3
Weights
Note (1)
Long undercarriage, Reach boom, R2.9 (9'6") stick, HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) triple grouser shoes, 4.2 mt (9,300 lb) counterweight
Note (2)
Long undercarriage, Reach boom, R2.9 (9'6") stick, HD 1.19 m3 (1.56 yd3) bucket and 600 mm (24 in) triple grouser shoes, 4.2 mt (9,300 lb) counterweight
Operating Weight - North America
49600lb
Operating Weight - Europe/Australia & New Zealand
48300lb
Hydraulic
Pump Flow Capacity
19.1gal/min
Relief Valve Pressure
3450psi
Hydraulic System
Maximum Pressure - Travel
4974 psi
Maximum Pressure - Swing
3886 psi
Main System - Maximum Flow - Total
113 gal/min
Maximum Pressure - Equipment - Normal
5075 psi
Service Refill Capacities
Cooling System
6.6gal
Def Tank
10.3gal
Final Drive - Each
1.3gal
Hydraulic Tank
30.4gal
Hydraulic System - Including Tank
61.8gal
Engine Oil
4gal
Fuel Tank Capacity
86.6gal
Swing Drive - Each
1.3gal
Drive
Maximum Travel Speed
3.5mph
Maximum Drawbar Pull
46311lb
Maximum Gradeability
35 degrees--70%
Swing
Swing Speed
11.3rpm
Maximum Swing Torque
54440lb ft
Dimensions - Reach Boom - 5.7 M (18'8"); R2.9 (9'6") Stick
Shipping Height
9.7ft in
Shipping Length
31.3ft in
Track Gauge
7.8ft in
Transport Width - 790 Mm (31 In) Shoes
10.4ft in
Counterweight Clearance
3.4ft in
Transport Width - 600 Mm (24 In) Shoes
9.8ft in
Note (1)
With GD 0.8m3 bucket and 790 mm (35") shoes.
Note (2)
Reach boom as same dimensions as HD reach boom
Track Length
12ft in
Working Ranges - Reach Boom - 5.7 M (18'8"); R2.9 (9'6") Stick
Maximum Digging Depth
22ft in
Maximum Reach - Ground Level
32.3ft in
Maximum Cutting Height
30.7ft in
Maximum Loading Height
21.3ft in
Minimum Loading Height
7.1ft in
Maximum Depth Cut For 2440 Mm (8'0") Level Bottom
21.5ft in
Maximum Vertical Wall Digging Depth
17ft in
Bucket Digging Force (Iso)
10.1lb ft
Stick Digging Force (Sae)
12lb ft
