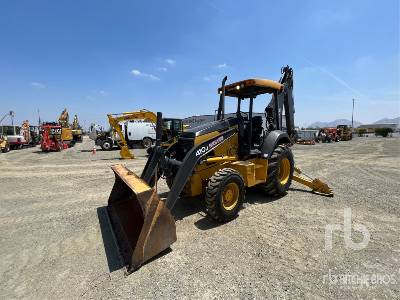

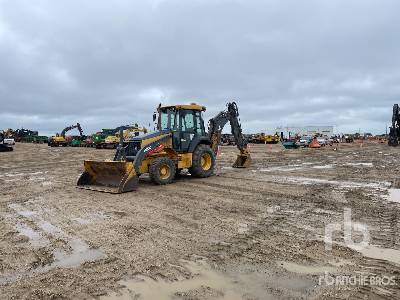

John Deere 410J Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
12.5ft in
K
Reach From Swivel - Std
19.68ft in
L
Dig Depth - Std
15.83ft in
Load Height - Ext
15.5ft in
Reach From Swivel - Ext
23.67ft in
Dig Depth - Ext
20ft in
Bucket Dig Force - Std
14801lb
Dimensions
A
Transport Length
23.92ft in
B
Transport Width
7.58ft in
C
Transport Height
12.93ft in
D
Wheelbase
7ft in
E
Ground Clearance
1.17ft in
Height To Top Of Suspended Cab
9.25ft in
Loader
G
Clearance At Max Dump Height
8.33ft in
H
Reach At Max Dump Height
2.96ft in
I
Dig Depth
4.22in
Lift Capacity At Full Height
7340lb
Bucket Capacity
1.25yd3
Bucket Width
85.99in
Bucket Breakout Force
10210lb
Specifications
Engine
Engine Make
2240
Engine Model
4045T
Net Power
96hp
Power Measured @
2100rpm
Torque Measured @
1500rpm
Net Torque Rise
26%
Net Max Torque
278lb ft
Aspiration
Turbocharged
Displacement
276cu in
Operational
Operating Weight 2wd
15000lb
Fuel Capacity
41gal
Operating Weight 4wd
18500lb
Hydraulic System Fluid Capacity
25gal
Oil System Fluid Capacity
3.5gal
Cooling System Fluid Capacity
5.6gal
Transmission Fluid Capacity
4gal
Front Axle Fluid Capacity
1.8gal
Rear Axle Fluid Capacity
4.8gal
Tire Size Front - 2wd / 4wd
11L-16 12PR/12.5/80-18 10PR
Rear Tires Size 2wd/4wd
19.5L-24 10PR
Operating Voltage
12V
Alternator Supplied Amperage
90amps
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
23.2mph
Max Speed Reverse
13.4mph
Hydraulic
Pump Type
Axial-piston
Pump Flow Capacity
42gal/min
Relief Valve Pressure
3625psi
