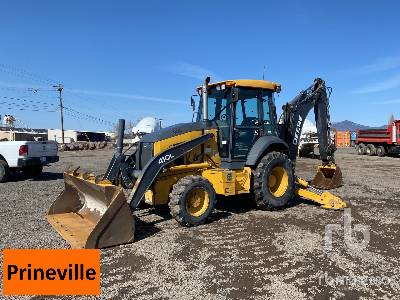

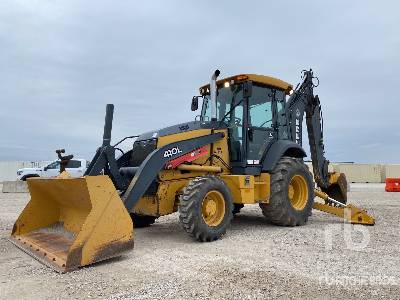

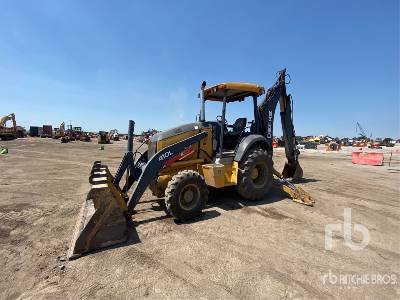

John Deere 410L Loader Backhoe
Units
Dimensions
Dimensions
D
Wheelbase
7.19ft in
E
Ground Clearance
1.1ft in
Dump Height
8.8ft in
Dump Reach - General Purpose
29.53in
Height Over Ext Stick
3930 mm (12 ft 11 in)
Height Over Std Stick
12.9ft in
Max Length With Ext. Stick
24.38ft in
Max Length With Std. Stick
24.38ft in
Shovel Pin Height - General Purpose
11.32ft in
Width - General Purpose Shovel
2346 mm (7 ft 8 in)
Bucket Rotation - Position 1
190
Width Over Tires
7.16ft in
Digging Depth
6.19in
Specifications
Engine
Engine Output-Net
113hp
Battery
12
Engine Make
John Deere
Engine Model
PowerTech Plus 4045HT083
Rated Speed
2240rpm
Displacement
274.7cu in
Capacities
Fuel Tank
37gal
Hydraulic Tank
11.9gal
Stick Tearout
10925.8lb
Boom Lift - Maximum Reach - Non-Extending Dipper
4389.5lb
4wd Front Axle
1.8gal
Rear Axle
4.8gal
Bucket Tearout - Non-Extending Dipper
17355.3lb
Shovel Breakout - General Purpose
10633.5lb
Lift To Full Height - General Purpose Shovel
7149.6lb
Shovel Capacity - Standard General Purpose
1.4yd3
Transmission
Transmission Type
Powershift
Weights
Operating Weights
18029.5lb
Weight - 4wd, Gp, Std Stick
18049.3lb
Hydraulic
Pump Type
Axial Piston Pump
Pump Flow Capacity
42.1gal/min
Brakes
Actuation
Hydraulic with Power Assist
Brakes Type
Wet Multi Disc
