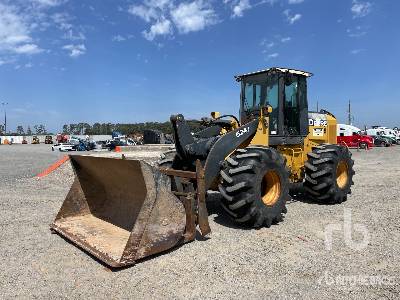

John Deere 624J Waste Handler High-Lift Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
10.83ft in
Bucket Capacity - Heaped
4yd3
Bucket Capacity - Struck
3.5yd3
Bucket Width
9.58ft in
Breakout Force
23137lb
Dimensions
E
Ground Clearance
1.56ft in
A
Length With Bucket On Ground
24.75ft in
B
Width Over Tires
8.42ft in
C
Height To Top Of Cab
11.17ft in
D
Wheelbase
9.92ft in
F
Hinge Pin - Max Height
14.33ft in
H
Reach At Max Lift And Dump
5.92ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H
Net Power
198hp
Power Measured @
1800rpm
Max Torque
617lb ft
Displacement
414cu in
Torque Measured @
1600rpm
Aspiration
turbocharged
Torque Rise
55%
Operational
Operating Weight
39715lb
Fuel Capacity
93gal
Hydraulic System Fluid Capacity
32gal
Engine Oil Fluid Capacity
5.6gal
Cooling System Fluid Capacity
7.2gal
Transmission Fluid Capacity
6.1gal
Front Axle/Diff Fluid Capacity
5.9gal
Rear Axle/Diff Fluid Capacity
4.5gal
Static Tipping Weight
24754lb
Turning Radius
17ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
16degrees
Tire Size
20.5 -25
Transmission
Transmission Type
Automactic Powershift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
15.2mph
Max Speed - Reverse
16mph
Hydraulic System
Relief Valve Setting
3675psi
Pump Flow Capacity
60gal/min
Raise Time
5.9sec
Dump Time
1.3sec
Lower Time
2.7sec
Pump Type
Variable axial piston
