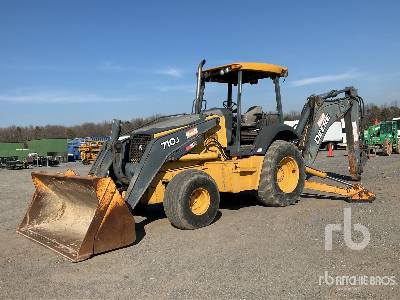

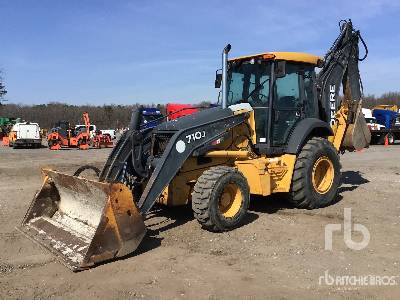

John Deere 710J Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
14.25ft in
K
Reach From Swivel - Std
22.5ft in
L
Dig Depth - Std
17.83ft in
Load Height - Ext
17ft in
Reach From Swivel - Ext
26.83ft in
Dig Depth - Ext
22.33ft in
Bucket Dig Force - Std
17000lb
Dimensions
A
Transport Length
26.74ft in
B
Transport Width
7.92ft in
C
Transport Height
13.69ft in
D
Wheelbase
8.27ft in
E
Ground Clearance
1.17ft in
Height To Top Of Suspended Cab
9.75ft in
Loader
G
Clearance At Max Dump Height
9.58ft in
H
Reach At Max Dump Height
2.27ft in
I
Dig Depth
4.1in
Lift Capacity At Full Height
9285.87lb
Bucket Capacity
1.62yd3
Bucket Width
97in
Bucket Breakout Force
15540lb
Specifications
Engine
Engine Make
2240
Engine Model
6068T
Net Power
123hp
Power Measured @
2000rpm
Torque Measured @
1300rpm
Net Torque Rise
41%
Net Max Torque
395lb ft
Aspiration
Turbocharged
Displacement
414cu in
Operational
Operating Weight 2wd
23000lb
Fuel Capacity
69gal
Operating Weight 4wd
26000lb
Hydraulic System Fluid Capacity
40gal
Oil System Fluid Capacity
5.3gal
Cooling System Fluid Capacity
6.9gal
Transmission Fluid Capacity
4gal
Front Axle Fluid Capacity
2.4gal
Rear Axle Fluid Capacity
4.3gal
Turning Radius
15ft in
Tire Size Front - 2wd / 4wd
14.5/75-16 10PR/15-19.5 8PR
Rear Tires Size 2wd/4wd
21L-28 14 PR
Operating Voltage
12V
Alternator Supplied Amperage
90amps
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
24.7mph
Max Speed Reverse
17mph
Hydraulic
Pump Type
Axial-piston
Pump Flow Capacity
52gal/min
Relief Valve Pressure
3625psi
