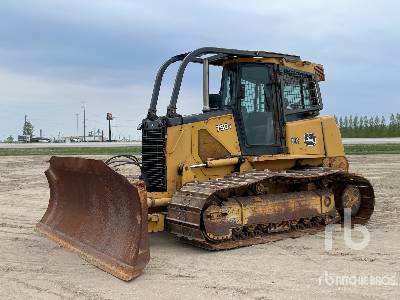

John Deere 750J LGP Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
17.33ft in
B
Width Over Tracks
9.83ft in
C
Height To Top Of Cab
10.17ft in
D
Length Of Track On Ground
10.09ft in
E
Ground Clearance
1.18ft in
Undercarriage
G
Track Gauge
7ft in
H
Standard Shoe Size
34in
Number Of Track Rollers Per Side
8
Ground Pressure
4.45psi
Number Of Shoes Per Side
45
Ground Contact Area
8228in2
Track Pitch
7.5in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H
Gross Power
168hp
Net Power
155hp
Power Measured @
2100rpm
Max Torque
540lb ft
Displacement
414cu in
Torque Measured @
1400rpm
Aspiration
Turbocharged w/ aftercooler
Operational
Operating Weight
36725lb
Fuel Capacity
98gal
Cooling System Fluid Capacity
5.7gal
Engine Oil Capacity
7gal
Hydraulic Fluid Capacity
27.9gal
Powertrain Fluid Capacity
27.9gal
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Transmission
Transmission Type
Hydrostatic
Max Speed - Forward
6.3mph
Max Speed - Reverse
6.3mph
Hydraulic System
Pump Type
Piston
Relief Valve Pressure
3625psi
Pump Flow Capacity
38gal/min
Standard Blade
Width
13ft in
Height
46.1in
Capacity
5yd3
Blade Angle (Both Directions)
23.5degrees
Cutting Depth
25.6in
