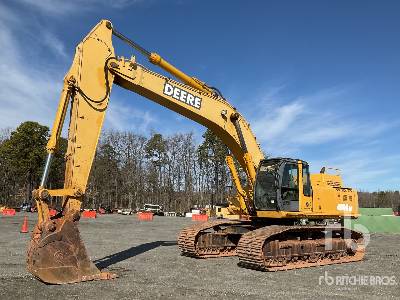

John Deere 790D Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
33.58ft in
C
Shipping Height Of Unit
10.5ft in
I
Max Cutting Height
30.17ft in
J
Max Loading Height
20.83ft in
K
Max Reach Along Ground
31.25ft in
L
Max Vertical Wall Digging Depth
17.08ft in
M
Max Digging Depth
20.43ft in
Boom/Stick Option (Hex) 1
opt. Short Arm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
33.17ft in
I
Max Cutting Height
31.08ft in
C
Shipping Height Of Unit
9.83ft in
J
Max Loading Height
21.58ft in
K
Max Reach Along Ground
33.25ft in
L
Max Vertical Wall Digging Depth
19.75ft in
M
Max Digging Depth
22.58ft in
Boom/Stick Option (Hex) 2
Standard Arm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
33.33ft in
I
Max Cutting Height
31.67ft in
J
Max Loading Height
22.33ft in
C
Shipping Height Of Unit
10.33ft in
K
Max Reach Along Ground
35.17ft in
L
Max Vertical Wall Digging Depth
21.83ft in
M
Max Digging Depth
24.67ft in
Boom/Stick Option (Hex) 3
opt. Long Arm
Dimensions
E
Ground Clearance
1.42ft in
G
Height To Top Of Cab
9.58ft in
B
Width To Outside Of Tracks
9.83ft in
D
Length Of Track On Ground
11.33ft in
H
Tail Swing Radius
9.67ft in
Removal Counterweight Clearance
3.58ft in
Undercarriage
F
Track Gauge
7.83ft in
N
Shoe Size
24in
Max Travel Speed
2.8mph
Ground Pressure
7.27psi
Number Of Shoes Per Side
47
Number Of Carrier Rollers Per Side
2
Number Of Track Rollers Per Side
8
Drawbar Pull
37250lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6466A
Gross Power
165hp
Net Power
155hp
Power Measured @
2100rpm
Max Torque
510lb ft
Displacement
466cu in
Aspiration
Turbocharged with aftercooler
Torque Measured @
1300rpm
Operational
Operating Weight
53143lb
Fuel Capacity
82gal
Cooling System Fluid Capacity
34gal
Hydraulic System Fluid Capacity
71gal
Operating Voltage
24V
Engine Oil Capacity
25gal
Swing Drive Fluid Capacity
8gal
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
124.8gal/min
Swing Mechanism
Swing Speed
12rpm
Buckets
Reference Bucket Capacity
1.4yd3
Minimum Bucket Capacity
0.8yd3
Maximum Bucket Capacity
1.4yd3
