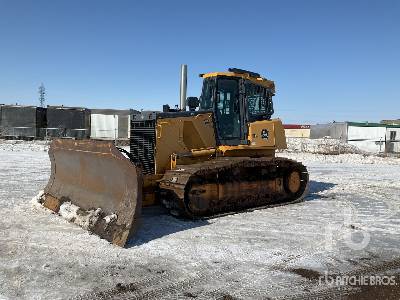

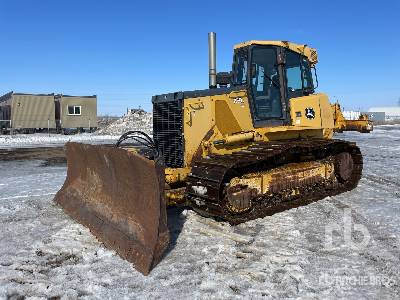

John Deere 850J WLT Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
18.75ft in
B
Width Over Tracks
9.84ft in
C
Height To Top Of Cab
10.42ft in
D
Length Of Track On Ground
10.78ft in
E
Ground Clearance
1.35ft in
Undercarriage
G
Track Gauge
7.33ft in
H
Standard Shoe Size
30in
Number Of Track Rollers Per Side
8
Ground Pressure
5.65psi
Number Of Shoes Per Side
45
Ground Contact Area
7758in2
Track Pitch
8in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6090HT
Gross Power
192hp
Net Power
185hp
Power Measured @
1800rpm
Max Torque
611lb ft
Displacement
550cu in
Torque Measured @
1500rpm
Aspiration
Turbocharger w/ aftercooler
Operational
Operating Weight
43918.3lb
Fuel Capacity
98gal
Cooling System Fluid Capacity
9.2gal
Engine Oil Capacity
7.1gal
Hydraulic Fluid Capacity
27.9gal
Powertrain Fluid Capacity
27.9gal
Final Drives Fluid Capacity
4.4gal
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Transmission
Transmission Type
Hydrostatic
Max Speed - Forward
6.3mph
Max Speed - Reverse
6.3mph
Hydraulic System
Pump Type
Hydrostatic
Relief Valve Pressure
3625psi
Pump Flow Capacity
46gal/min
Standard Blade
Width
13.2ft in
Height
48.4in
Capacity
5.6yd3
Blade Angle (Both Directions)
23.8degrees
Cutting Depth
27.7in
