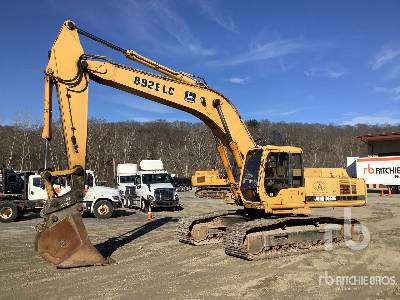

John Deere 892E Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
36.25ft in
C
Shipping Height Of Unit
11.17ft in
I
Max Cutting Height
32.33ft in
J
Max Loading Height
22.33ft in
K
Max Reach Along Ground
34ft in
L
Max Vertical Wall Digging Depth
18.43ft in
M
Max Digging Depth
22.42ft in
Boom/Stick Option (Hex) 1
Arm Length 8ft. 9in. (2.7 m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
35.92ft in
I
Max Cutting Height
33.5ft in
C
Shipping Height Of Unit
10.5ft in
J
Max Loading Height
23.33ft in
K
Max Reach Along Ground
35.75ft in
L
Max Vertical Wall Digging Depth
21.25ft in
M
Max Digging Depth
24.25ft in
Boom/Stick Option (Hex) 2
Arm Length 10ft 6in. (3.2m )
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
36.08ft in
I
Max Cutting Height
34.75ft in
J
Max Loading Height
24.58ft in
C
Shipping Height Of Unit
11.42ft in
K
Max Reach Along Ground
38.33ft in
L
Max Vertical Wall Digging Depth
24.17ft in
M
Max Digging Depth
26.83ft in
Boom/Stick Option (Hex) 3
Arm Length 13ft 1in. (4.0m )
Dimensions
E
Ground Clearance
1.67ft in
G
Height To Top Of Cab
9.92ft in
B
Width To Outside Of Tracks
10.5ft in
D
Length Of Track On Ground
13.17ft in
H
Tail Swing Radius
10.83ft in
Removal Counterweight Clearance
3.83ft in
Undercarriage
F
Track Gauge
8.5ft in
N
Shoe Size
24in
Max Travel Speed
3.4mph
Ground Pressure
6.81psi
Number Of Shoes Per Side
50
Number Of Carrier Rollers Per Side
2
Number Of Track Rollers Per Side
9
Drawbar Pull
52120lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6076A
Net Power
220hp
Gross Power
232hp
Power Measured @
2000rpm
Max Torque
650lb ft
Displacement
466cu in
Aspiration
Turbocharged with Aftercooler
Torque Measured @
1400rpm
Operational
Operating Weight
67450lb
Fuel Capacity
135gal
Cooling System Fluid Capacity
34gal
Hydraulic System Fluid Capacity
82gal
Engine Oil Capacity
6.3gal
Operating Voltage
24V
Swing Drive Fluid Capacity
13.8gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4270psi
Hydraulic Pump Flow Capacity
144gal/min
Swing Mechanism
Swing Speed
12rpm
Buckets
Reference Bucket Capacity
2.4yd3
