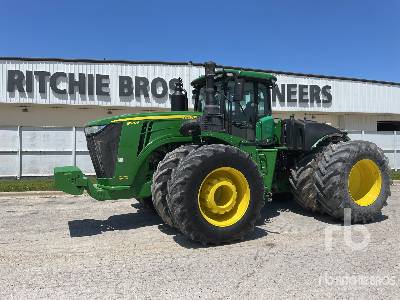

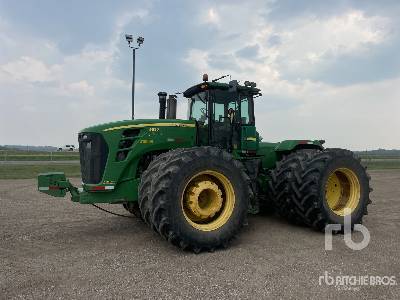

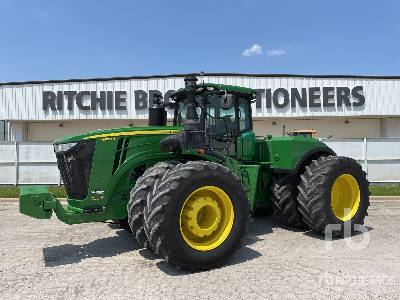

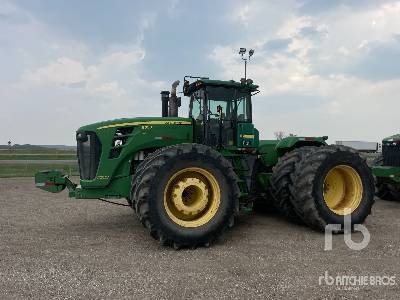

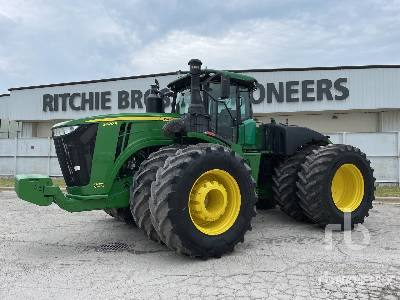

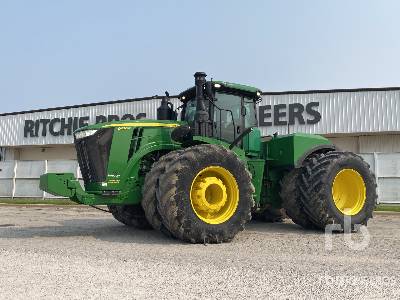

John Deere 9470RT Scraper Special 4WD Tractor
Units
Specifications
Engine
Engine Manufacturer
John Deere
Family
PowerTech? 13.5L
Cylinder Liners
Wet-sleeve
Fuel Tank Capacity
350gal
Displacement
824cu in
Aspiration
Fixed geometry turbocharger with air-to-air aftercooling
Performance
Advertised Engine
470hp
Max Torque Rise
38%
Transmission
Standard Transmission; Forward/Reverse
e18? 18-speed PowerShift 40 kph (25 mph); 18F, 6R with Efficiency Manager?
Tires
Track Widths
30in
Hydraulic
Pump Rated Output 1
58gal/min
Maximum Operating Pressure
2900psi
Remote Control Valves Available
4 Standard, 6 optional
Rated Flow @ One Scv
35gal/min
Hitch Category (Sae Designation)
4N/Cat. 4
Hydraulic Type
Closed-center, pressure/flow compensated
Pump Rated Output
115gal/min
Final Drive
Final Drive Type
Outboard planetary
Brakes, Type And Control
Hydraulic power, wet disk, self adjusting on front and rear axle, plus secondary brake
