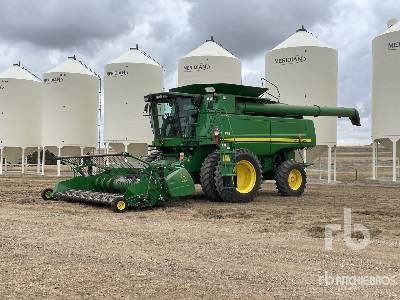

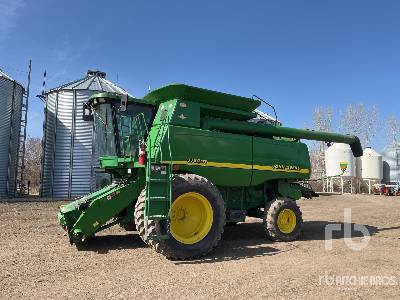

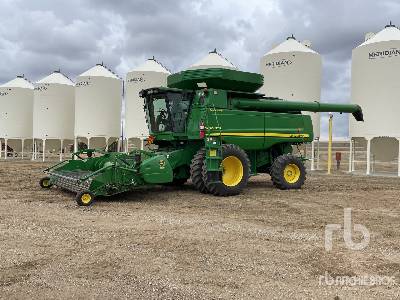

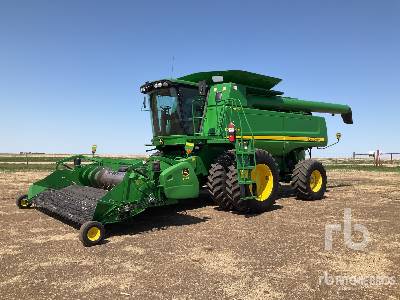

John Deere 9570 STS Combine
Units
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Power
265hp
Power Boost Power
298hp
Power Measured @
2300rpm
Displacement
415cu in
Operational
Operating Weight W/O Attachment
29945lb
Fuel Capacity
200gal
Feeding
Conveyor Width
55in
Conveyor Length
68in
Threshing
Rotor Diameter
23.7in
Rotor Length
123.3in
Rotor Speed - Low
230rpm
Rotor Speed - High
1300rpm
Concave Area
1395.1in2
Separating
Separator Type
rotary
Separating Area
2015.1in2
Discharge Grate Area
465.1in2
Cleaning System
Total Cleaning Area
5502.6in2
Cleaning Fan Speed - Low
620rpm
Cleaning Fan Speed - High
1200rpm
Grain Handling
Grain Tank Capacity
221.4bu
Unloading Auger Length
18.5ft in
Unloading Speed
2.2bu/sec
Unloading Discharge Height
13.4ft in
