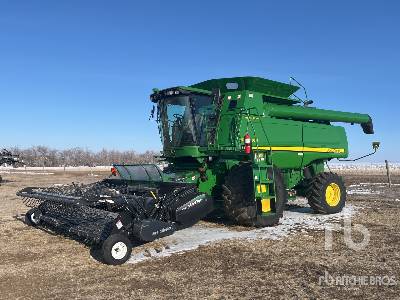

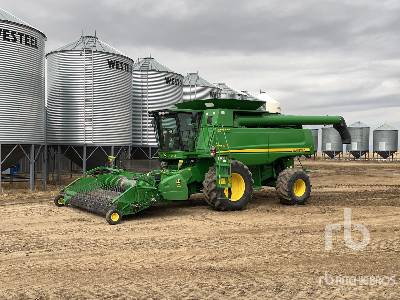

John Deere 9770 STS Combine
Units
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Power
360hp
Power Boost Power
385hp
Power Measured @
2200rpm
Displacement
549.3cu in
Operational
Operating Weight W/O Attachment
32765.1lb
Fuel Capacity
249.7gal
Feeding
Conveyor Width
55in
Conveyor Length
68in
Threshing
Rotor Diameter
29.6in
Rotor Length
123.3in
Rotor Speed - Low
210rpm
Rotor Speed - High
1000rpm
Concave Area
1705.1in2
Separating
Separator Type
rotary
Separating Area
2387.1in2
Discharge Grate Area
558.1in2
Cleaning System
Total Cleaning Area
6959.6in2
Cleaning Fan Speed - Low
620rpm
Cleaning Fan Speed - High
1200rpm
Grain Handling
Grain Tank Capacity
300.9bu
Unloading Auger Length
21.5ft in
Unloading Speed
3.3bu/sec
Unloading Discharge Height
14.3ft in
