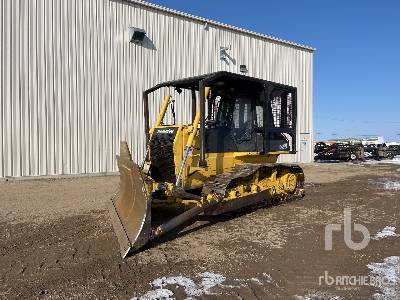

Komatsu D65EX-12 Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
17.85ft in
C
Height To Top Of Cab
10.39ft in
D
Length Of Track On Ground
8.78ft in
Undercarriage
G
Track Gauge
6.17ft in
H
Standard Shoe Size
24.02in
Ground Pressure
7.11psi
Ground Contact Area
5058.44in2
Number Of Shoes Per Side
39
Number Of Track Rollers Per Side
2
Specifications
Engine
Number Of Cylinders
6
Engine Make
2238
Engine Model
S6D125E-2
Net Power
190.5hp
Max Torque
723.6lb ft
Displacement
673.8cu in
Aspiration
Turbocharged
Operational
Operating Weight
36453.5lb
Fuel Capacity
107.3gal
Cooling System Fluid Capacity
13.8gal
Engine Oil Capacity
10.1gal
Hydraulic Fluid Capacity
14.6gal
Powertrain Fluid Capacity
12.7gal
Final Drives Fluid Capacity
6.4gal
Operating Voltage
24V
Transmission
Transmission Type
Torqueflow Transmission, planetary gear
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
3.9mph
Max Speed - Reverse
5mph
Hydraulic System
Pump Type
Double acting piston
Relief Valve Pressure
2987.8psi
Pump Flow Capacity
55.5gal/min
Standard Blade
Width
11.4ft in
Height
56.2in
Capacity
7.4yd3
Cutting Depth
17.4in
