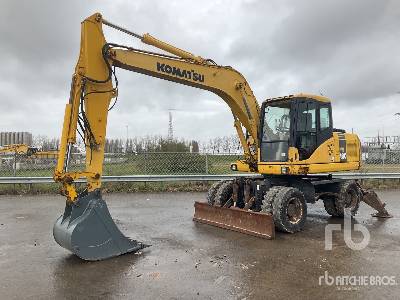

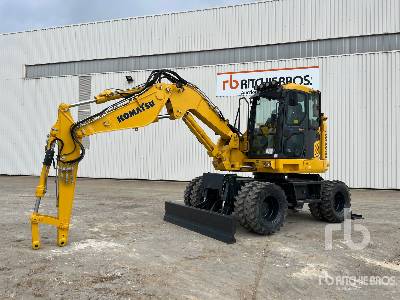

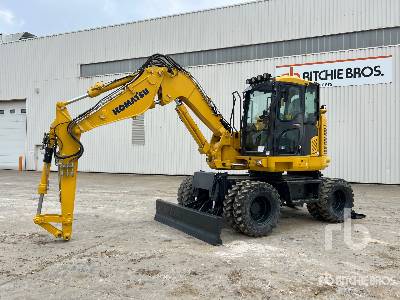

Komatsu PW150ES-6 Mobile Excavator
Units
Dimensions
Boom/Stick Option (Mex) 1
I
Max Cutting Height
28.42ft in
J
Max Loading Height
20.77ft in
K
Max Reach Along Ground
25.17ft in
L
Max Vertical Wall Dig Depth
11.85ft in
M
Max Digging Depth
15.49ft in
Boom/Stick Option (Mex) 1
boom w/ stick 2100mm
Boom/Stick Option (Mex) 2
I
Max Cutting Height
29.17ft in
J
Max Loading Height
21.53ft in
K
Max Reach Along Ground
26.42ft in
L
Max Vertical Wall Dig Depth
12.98ft in
M
Max Digging Depth
16.8ft in
Boom/Stick Option (Mex) 2
boom w/ stick 2500mm
Boom/Stick Option (Mex) 3
I
Max Cutting Height
30.42ft in
J
Max Loading Height
22.74ft in
K
Max Reach Along Ground
28.09ft in
L
Max Vertical Wall Dig Depth
14.59ft in
M
Max Digging Depth
18.44ft in
Boom/Stick Option (Mex) 3
boom w/ stick 3000mm
Boom/Stick Option (Mex) 4
I
Max Cutting Height
29.42ft in
J
Max Loading Height
21.67ft in
K
Max Reach Along Ground
26.01ft in
L
Max Vertical Wall Dig Depth
12.75ft in
M
Max Digging Depth
16.34ft in
Boom/Stick Option (Mex) 4
two piece boom w/ stick 2100mm
Specifications
Engine
Number Of Cylinders
4
Engine Make
2238
Engine Model
SA4D102E-1
Gross Power
112hp
Net Power
107hp
Power Measured @
2300rpm
Displacement
239.3cu in
Aspiration
Turbocharged
Operational
Fuel Capacity
66.1gal
Operating Weight
36354.3lb
Cooling System Fluid Capacity
5.3gal
Engine Oil Capacity
4.3gal
Front Diff Fluid Capacity
4gal
Rear Diff Fluid Capacity
5.3gal
Hydraulic System Fluid Capacity
35.7gal
Operational Voltage
24V
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4623psi
Hydraulic Pump Type
variable displacement piston
Hydraulic Pump Flow Capacity
79gal/min
Oscillating Axle Angle
14degrees
Swing Mechanism
Swing Speed
12rpm
Transmission
Transmission Type
fully automatic
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Travel Speed
18.7mph
