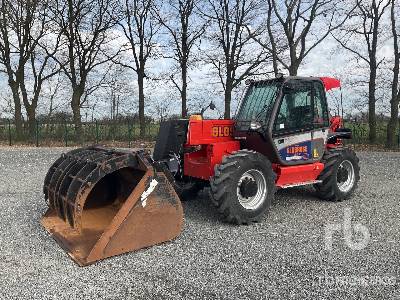

Manitou MLT 625-75 H Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
12.11ft in
E
Ground Clearance
0.2ft in
B
Width Over Tires
5.1ft in
C
Overall Height
6.7ft in
D
Wheelbase
7.7ft in
Turning Radius Outside Tires
10.1ft in
Lift
F
Max Lift Height
19.5ft in
G
Max Forward Reach
10.11ft in
Lowering Time - Unladen
4.95sec
Boom Retraction Time - Unladen
3.7sec
Breakout Force
9453.22lb
Crowd
3.2sec
Dump
3.2sec
Lifting Time - Unladen
7.3sec
Boom Extension Time - Unladen
5.2sec
Max Lift Capacity
5511.56lb
Specifications
Engine
Transmission Type
Hydrostatic
Number Of Cylinders
4
Engine Make
Kubota
Engine Model
V3307-DI-T-E4B
Gross Power
75hp
Max Torque
195.5lb ft
Torque Measured @
1400rpm
Displacement
204cu in
Fuel Type
Diesel
Emission Level
3B / Tier IV Final
Operational
Operating Weight
10851.2lb
Hydraulic System Fluid Capacity
30gal
Transmission
Max Speed - Forward
19.9mph
Hydraulic
Relief Valve Pressure
3408.4psi
