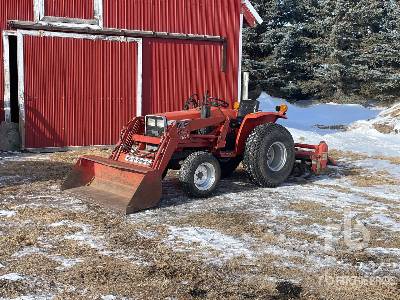

Massey Ferguson 2605 Utility Tractor
Units
Dimensions
Dimensions
A
Overall Length
129.93in
D
Wheelbase
6.41ft in
B
Overall Width
5.48ft in
E
Ground Clearance
10.04in
Height To Top Of Rops
92.33in
Height With Rops
7.7ft in
Specifications
Engine
Number Of Cylinders
3
Engine Model
S325.3
Gross Power
38.5hp
Pto Power
32hp
Power Measured @
2000rpm
Displacement
152.6cu in
Aspiration
Natural
Operational
Fuel Capacity
11.1gal
Tire Size Front - 2wd / 4wd
13.6x28
Electrical
Alternator
36amps
Battery
622
Power Take-Off(Pto)
Pto Speed
540rpm
Standard
Live
Optional
Independent
Power Take-Off(Pto) Type
Dry Dual Disc
Pto Speeds @ Engine Rpm
1790
Transmission
Number Of Forward Gears
8
Number Of Reverse Gears
2
Weights
Shipping
4530.5lb
Hydraulic System
Hydraulic System Type
Open Center and Modified Closed Center
Auxiliary Hydraulic Flow
9.8gal/min
Steering Pump
6.9gal/min
Pump Type
Gear and Scotch Yoke
Pump Flow Capacity
20.9gal/min
Number Of Remote Control Valves
1 or 2 Rear Valves
3-Point Hitch
Extendable Lower Links
Optiona
Category
Category I and II Cross Drilled Ball Ends
Asae Lift Capacity @ 24”
3196.8lb
Stabilizers
Chain Type
