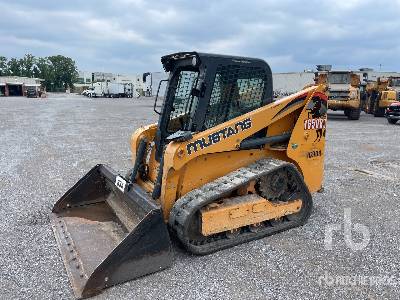

Mustang 2099 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
13.26ft in
B
Width Over Tires
6.75ft in
E
Ground Clearance
9.1in
C
Height To Top Of Cab
6.75ft in
D
Wheelbase
4.59ft in
F
Length W/O Bucket
10.17ft in
G
Clearance At Max Lift And Dump
9.13ft in
H
Reach At Max Lift And Dump
36.82in
Turning Radius From Center - Machine Rear
80.52in
Turning Radius From Center - Inc Bucket
98.51in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2351
Engine Model
1104C-E44
Net Power
85.9hp
Power Measured @
2400rpm
Displacement
268.6cu in
Operational
Operational Weight
10181lb
Fuel Capacity
29.1gal
Max Speed
6.5mph
Hydraulic System Fluid Capacity
15.4gal
Tire Size
14x17.5
Operating Voltage
12V
Alternator Supplied Amperage
950amps
Loader
Breakout Force
7880lb
Operating Load Rating
3400lb
Tipping Angle
6800degrees
Hydraulic
Pump Flow Capacity
29gal/min
Relief Valve Pressure
3300psi
