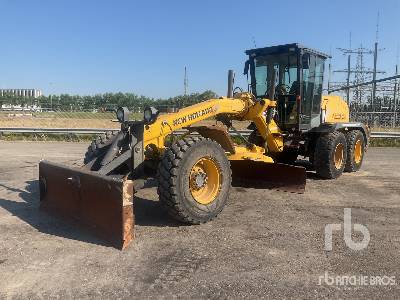

New Holland F156.6A Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
32.73ft in
B
Width Over Tires
8.52ft in
D
Wheelbase
19.63ft in
E
Rear Ground Clearance
1.08ft in
G
Tandem Axle Wheelbase
5.07ft in
F
Front Ground Clearance
0.47ft in
H
Blade Base
8.22ft in
Height To Top Of Isomount Cab
11.07ft in
Specifications
Engine
Number Of Cylinders
6
Engine Model
CNH 4-Stroke Diesel Engine
Power Measured @
2100rpm
Net Power Gear 5-6
175hp
Max Power
175hp
Displacement
358.9cu in
Aspiration
turbocharged water-cooled
Operational
Std Operation Weight - Front Axle
1005.4lb
Hydraulic System Fluid Capacity
52.9gal
Std Operation Weight - Rear Axle
22357.1lb
Std Operation Weight - Total
32487.4lb
Max Operation Weight - Front Axle
11464.1lb
Max Operation Weight - Rear Axle
25353.2lb
Oil System Fluid Capacity
3.4gal
Max Operation Weight - Total
35714.9lb
Fuel Capacity
72.7gal
Transmission Fluid Capacity
5.6gal
Tandem Case Fluid Capacity (Each)
18gal
Tire Size
17.5R25EM
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Steering
Articulation Angle
28degrees
Turning Radius
27067ft in
Transmission
Transmission Type
Full Powershift Transmission
Number Of Gears - Forward
6
Number Of Gears - Reverse
3
Max Speed - Forward
23.3mph
Max Speed - Reverse
16.9mph
Front Axle
Wheel Lean
21degrees
Oscillation - Total
15degrees
Ground Clearance
2.2ft in
Moldboard
Moldboard Width
12.1ft in
Moldboard Height
6in
Moldboard Thickness
0.8in
Max Depth Of Cut
19.7in
Side Shift Left
25.4in
Side Shift Right
29.8in
Hydraulic System
Pump Type
Swash Plate, Variable Displacement
Pump Flow
33.3gal/min
Relief Valve Pressure
2900.8psi
Circle
Shift Left
25.4in
Shift Right
29.8in
Max Reach Outside Tires - Left
99.3in
Max Reach Outside Tires - Right
126.4in
Max Lift Above Ground
18.9in
