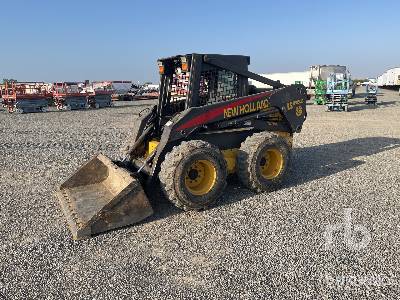

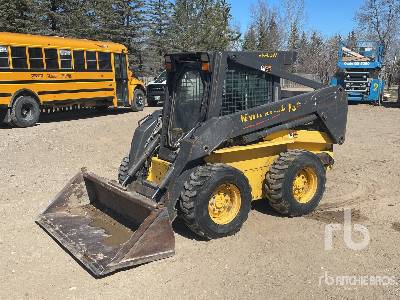

New Holland L150 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
9.98ft in
B
Width Over Tires
4.11ft in
E
Ground Clearance
8.27in
C
Height To Top Of Cab
6.11ft in
D
Wheelbase
3.12ft in
G
Clearance At Max Lift And Dump
7.29ft in
H
Reach At Max Lift And Dump
25.2in
Turning Radius From Center - Inc Bucket
65.36in
Specifications
Engine
Number Of Cylinders
3
Engine Make
2249
Engine Model
N843H
Gross Power
38hp
Net Power
36hp
Power Measured @
3200rpm
Displacement
91.5cu in
Operational
Operational Weight
4501.9lb
Fuel Capacity
8.8gal
Cooling System Fluid Capacity
2.5gal
Engine Oil Fluid Capacity
1.5gal
Max Speed
7.3mph
Hydraulic System Fluid Capacity
5gal
Chain Box Fluid Capacity - Each Side
1.6gal
Tire Size
10.00 x 16.5
Operating Voltage
12V
Alternator Supplied Amperage
40amps
Loader
Breakout Force
3507.6lb
Operating Load Rating
1349.3lb
Tipping Angle
2700.7degrees
Bucket Capacity
0.5yd3
Hydraulic
Pump Type
Gear type
Pump Flow Capacity
11.6gal/min
Relief Valve Pressure
2500psi
