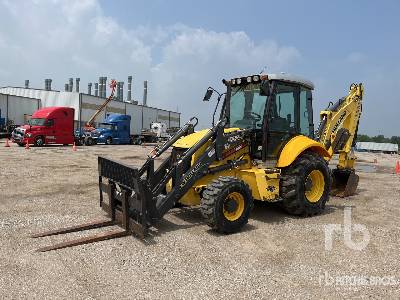

New Holland LB95.B Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
18.97ft in
K
Reach From Swivel - Std
19.26ft in
L
Dig Depth - Std
15.08ft in
M
Reach At Load Height - Std
7.67ft in
Reach From Swivel - Ext
22.82ft in
Dig Depth - Ext
18.97ft in
Load Height - Ext
21.23ft in
Reach At Load Height - Ext
10.86ft in
Dimensions
A
Transport Length
18.67ft in
B
Transport Width
7.98ft in
C
Transport Height
12.77ft in
D
Wheelbase
7.14ft in
E
Ground Clearance
1.22ft in
Height To Top Of Suspended Cab
9.45ft in
Loader
G
Clearance At Max Dump Height
14.7ft in
H
Reach At Max Dump Height
2.32ft in
I
Dig Depth
3.94in
Lift Capacity At Full Height
7826.41lb
Specifications
Engine
Number Of Cylinders
4
Engine Model
CNH F4GE0454C*D
Net Power
95hp
Power Measured @
2200rpm
Torque Measured @
1400rpm
Net Max Torque
216.9lb ft
Aspiration
Turbocharged
Displacement
274.7cu in
Operational
Fuel Capacity
35.7gal
Max Weight
18739.3lb
Hydraulic System Fluid Capacity
31.2gal
Oil System Fluid Capacity
3.7gal
Cooling System Fluid Capacity
6.4gal
Transmission Fluid Capacity
4.8gal
Tire Size Front - 2wd / 4wd
12.5 / 70 (10 Ply)
Rear Tires Size 2wd/4wd
18.4 / 26
Operating Voltage
12V
Alternator Supplied Amperage
70amps
Transmission
Transmission Type
PowerShuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
24.2mph
Max Speed Reverse
28.9mph
Hydraulic
Pump Type
Load Sensing / Flow Compensation
Pump Flow Capacity
39.9gal/min
Relief Valve Pressure
3045.8psi
