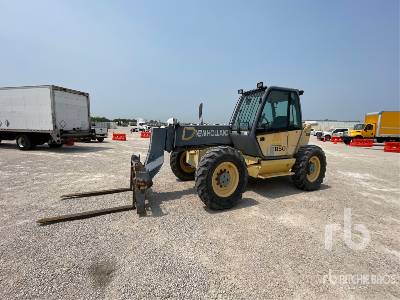

New Holland LM445A Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
16.06ft in
E
Ground Clearance
1.51ft in
B
Width Over Tires
7.73ft in
C
Overall Height
7.83ft in
D
Wheelbase
8.73ft in
Turning Radius Outside Tires
11.73ft in
Lift
F
Max Lift Height
29.2ft in
G
Max Forward Reach
21.33ft in
Max Load At Max Reach
1400lb
Max Load At Max Height
3300lb
Max Lift Capacity
6000lb
Specifications
Engine
Engine Make
0
Gross Power
95hp
Power Measured @
2200rpm
Max Torque
294lb ft
Torque Measured @
1400rpm
Displacement
275cu in
Aspiration
Turbocharged
Operational
Operating Weight
16400lb
Tire Size
17.5R24 XM27
Transmission
Transmission Type
Power Shuttle
Hydraulic
Pump Flow Capacity
29gal/min
