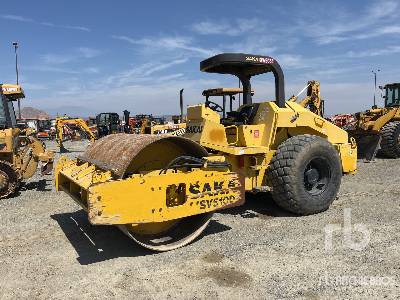

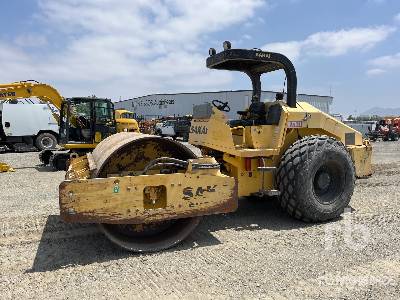

Sakai SV700T Vibratory Compactor
Units
Dimensions
Dimensions
A
Overall Length W/O Blade
19.38ft in
B
Width Over Tires
7.52ft in
C
Height To Top Of Cab
9.39ft in
D
Wheelbase
9.85in
E
Ground Clearance
16.93in
Drum
F
Drum Diameter
63in
Pad Height
3.94in
Vibration Frequency 1
36.71Hz
Vibratory Frequency 2
27.5Hz
Nominal Amplitude - Low
0.04in
Centrifugal Force - Low
49457.97lb
Drum Width
83.86in
Nominal Amplitude - High
0.08in
Centrifugal Force - High
61822.46lb
Number Of Pads
140
Specifications
Engine
Number Of Cylinders
4
Engine Make
2353
Engine Model
BB-6BG1TRJ
Gross Power
166.3hp
Power Measured @
2200rpm
Displacement
396.3cu in
Aspiration
turbocharged
Operational
Operating Weight
33069.4lb
Fuel Capacity
79.3gal
Hydraulic System Fluid Capacity
16.5gal
Max Speed
6.3mph
Tires
23.1-26-8PR (OR)
Operating Voltage
24V
