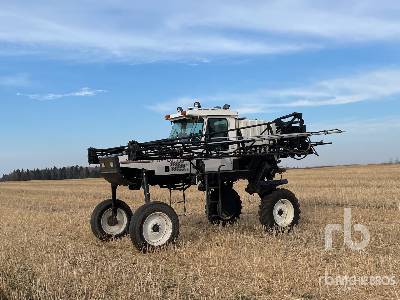

Spra-Coupe 3630 Sprayer
Units
Dimensions
Boom
G
Max Boom Width
59.06ft in
Max Adjustable Height
76in
Min Adjustable Height
21in
Nozzle Spacing
20in
Number Of Nozzles - Max
36
Dimensions
A
Overall Length
236.23in
D
Wheelbase
11.16ft in
B
Transport Width
7.55ft in
C
Transport Height
10.83ft in
Tire Size
Front - 9.00-24 SL, Rear 12.4-24 FS
Turning Radius
17.39ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
Peugeot
Engine Model
XUD11AT
Gross Power
87.2hp
Cooling System
Liquid
Air Cleaner
Dual element, dry replacement cartridge
Power Measured @
3600rpm
Displacement
127.4cu in
Gross Torque
154.2lb ft
Bore
3.4in
Stroke
3.7in
Operational
Operating Weight
9259.5lb
Fuel Capacity
25.1gal
Engine Oil Capacity
2.1gal
Cooling System Fluid Capacity
2.6gal
Transmission Fluid Capacity
0.8gal
Hydraulic Fluid Capacity
3.5gal
Operating Voltage
12V
Alternator Supplied Amperage
5amps
Transmission
Transmission Type
Borg-Warner T-5, neutral start interlock
Number Of Forward Gears
5
Number Of Reverse Gears
1
Max Speed
19.9mph
