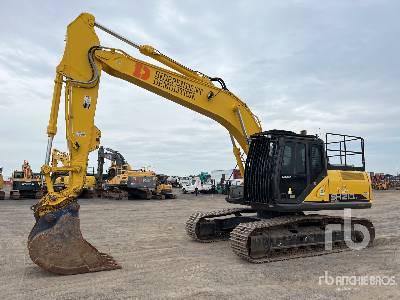

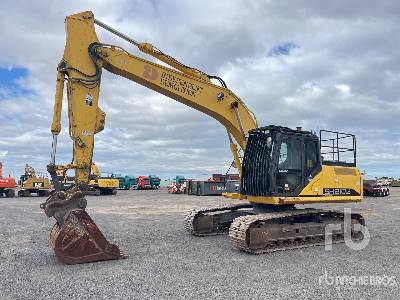

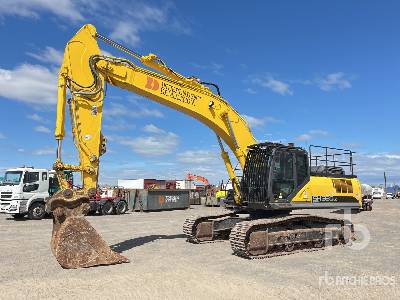

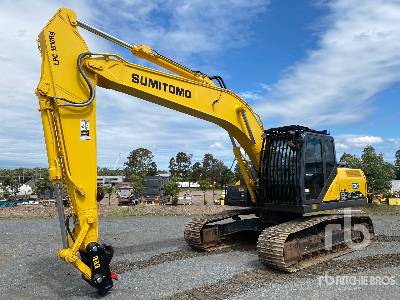

Sumitomo SH300-2 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
35.63ft in
C
Shipping Height Of Unit
11.03ft in
I
Max Cutting Height
33.73ft in
J
Max Loading Height
23.59ft in
K
Max Reach Along Ground
36.52ft in
L
Max Vertical Wall Digging Depth
20.77ft in
M
Max Digging Depth
24.25ft in
Boom/Stick Option (Hex) 1
Boom / Stick 3230mm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
35.63ft in
I
Max Cutting Height
31.96ft in
C
Shipping Height Of Unit
11.03ft in
J
Max Loading Height
22.02ft in
K
Max Reach Along Ground
33.37ft in
L
Max Vertical Wall Digging Depth
16.44ft in
M
Max Digging Depth
20.9ft in
Boom/Stick Option (Hex) 2
Boom / Stick 2210mm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
35.63ft in
I
Max Cutting Height
32.75ft in
J
Max Loading Height
22.68ft in
C
Shipping Height Of Unit
11.03ft in
K
Max Reach Along Ground
34.68ft in
L
Max Vertical Wall Digging Depth
18.38ft in
M
Max Digging Depth
22.31ft in
Boom/Stick Option (Hex) 3
Boom / Stick 2630mm
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
35.63ft in
C
Shipping Height Of Unit
11.03ft in
I
Max Cutting Height
34.62ft in
J
Max Loading Height
24.48ft in
K
Max Reach Along Ground
38.92ft in
M
Max Digging Depth
26.88ft in
Max Vertical Wall Dig Depth
23.33ft in
Boom/Stick Option (Hex) 4
Boom / Stick 4030mm
Dimensions
E
Ground Clearance
1.65ft in
G
Height To Top Of Cab
9.95ft in
B
Width To Outside Of Tracks
10.5ft in
D
Length Of Track On Ground
11.82ft in
H
Tail Swing Radius
10.6ft in
Removal Counterweight Clearance
3.91ft in
Undercarriage
F
Track Gauge
8.54ft in
N
Shoe Size
23.63in
Ground Pressure
9.52psi
Max Travel Speed
3.11mph
Specifications
Engine
Engine Make
2251
Engine Model
6D22T
Net Power
226.7hp
Power Measured @
1650rpm
Displacement
679.9cu in
Operational
Operating Weight
69004.7lb
Fuel Capacity
153.3gal
Hydraulic System Fluid Capacity
84.6gal
Hydraulic System Relief Valve Pressure
4622psi
Swing Mechanism
Swing Speed
9.5rpm
Buckets
Reference Bucket Capacity
1.9yd3
Minimum Bucket Capacity
1.5yd3
Maximum Bucket Capacity
2.1yd3
