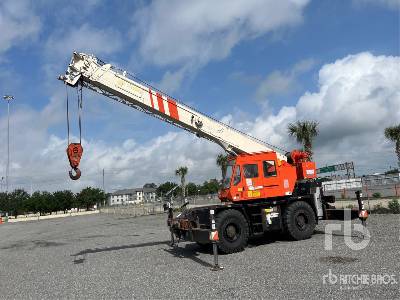

Tadano TR500EX Rough Terrain Crane
Units
Dimensions
Boom
I
Min Height @ Max Raise Angle
35.11ft in
J
Max Height @ Max Raise Angle - No Jib
111.88ft in
M
Max Elevating Angle
80degrees
Max Lift Capacity
110231.13lb
Swing Speed
2.21rpm
Number Of Sections
4
Dimensions
A
Transport Length
44.53ft in
B
Transport Width
10.88ft in
C
Transport Height
12.47ft in
D
Wheelbase
151.58in
F
Width W/ Outriggers Extended
22.97ft in
G
Carrier/Base Length
26788.06ft in
H
Upper Structure Tail Swing Radius
13.59ft in
Specifications
Engine
Engine Make
Mitsubishi
Engine Model
6D22
Gross Power
187.5hp
Power Measured @
2300rpm
Max Torque
499.1lb ft
Torque Measured @
1200rpm
Displacement
680.4cu in
Aspiration
Direct injection, Water cooled
Operational
Operating Weight
95019.3lb
Fuel Capacity
66.1gal
Hydraulic System Fluid Capacity
195.5gal
Cooling System Fluid Capacity
3gal
Operating Voltage
24V
Tire Size
29.5-25-22 PR
Transmission
Max Speed - Forward
21.8mph
