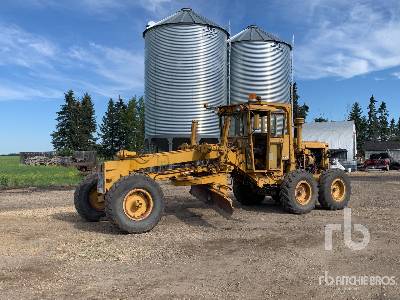

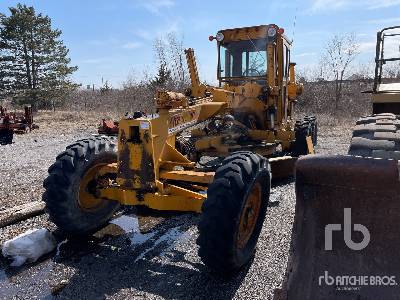

Terex TG190TA-3 Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
33.67ft in
B
Width Over Tires
8.08ft in
D
Wheelbase
20.08ft in
E
Rear Ground Clearance
18.61ft in
G
Tandem Axle Wheelbase
5.08ft in
F
Front Ground Clearance
18.61ft in
Height To Top Of Isomount Cab
10.83ft in
Specifications
Engine
Engine Make
2347
Net Power Gear 5-6
176hp
Max Power
176hp
Displacement
366cu in
Aspiration
Turbo Charged, Water cooled
Operational
Std Operation Weight - Front Axle
11023lb
Std Operation Weight - Rear Axle
30203lb
Hydraulic System Fluid Capacity
44.9gal
Std Operation Weight - Total
41266lb
Fuel Capacity
126.8gal
Cooling System Fluid Capacity
11.9gal
Transmission Fluid Capacity
9gal
Rear Diff/Final Drive Fluid Capacity
4gal
Circle Gearbox Fluid Capacity
1.6gal
Tandem Case Fluid Capacity (Each)
5.5gal
Tire Size
14.00 -24TG
Operating Voltage
24V
Alternator Supplied Amperage
55amps
Transmission
Transmission Type
Auto Power Shift Tansmission With torque Converter
Number Of Gears - Forward
6
Number Of Gears - Reverse
3
Max Speed - Forward
24.9mph
Max Speed - Reverse
12mph
Front Axle
Wheel Lean
17degrees
Oscillation - Total
15degrees
Ground Clearance
23.3ft in
Moldboard
Moldboard Width
12ft in
Moldboard Height
24.8in
Moldboard Thickness
0.8in
Blade Pull At Max Weight
31264lb
Hydraulic System
Pump Type
Axial Piston Pump
Pump Flow
26.1gal/min
Relief Valve Pressure
2669psi
Circle
Diameter
5in
Max Lift Above Ground
4.3in
