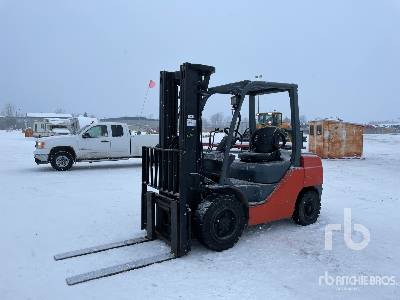

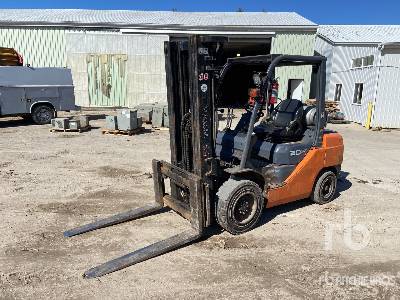

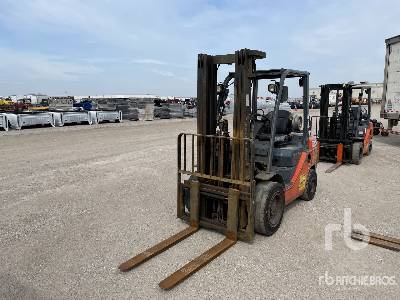

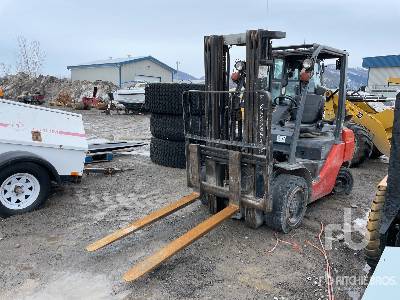

Toyota 8FGU30 Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
9.13ft in
B
Overall Width
4.07ft in
C
Overall Height - Mast Lowered
7.11ft in
D
Wheelbase
5.58ft in
E
Ground Clearance
4.53in
F
Height To Top Of Overhead Guard
7.12ft in
G
Max Fork Height
10.98ft in
Free Lift
5.32in
Gradeability
26%
Right Angle Stack
9.31ft in
Turning Radius
7.71ft in
Mast
Load Capacity
6000lb
Lift Speed
100ft/min
Max Fork Spread
9.85in
Lower Speed
98ft/min
Specifications
Engine
Battery
12 V
Number Of Cylinders
4
Engine Make
TOYOTA
Engine Model
4Y - ECS - HP5
Power
57hp
Torque
118lb ft
Power Measured @
2570rpm
Displacement
136cu in
Torque Measured @
2200rpm
Fuel Type
Gasoline
Operational
Operating Weight
9281.5lb
Tire Type
Pneumatic
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
11.2mph
Drawbar Pull
4409.3lb
Fuel Capacity
15.9gal
Tires
Tires - Size_Front
28 x 9-15-12PR (1)
Tires - Size_Rear
6.50-10-10PR (1)
Hydraulic
Main Pump Flow Standard
21gal/min
Maximum Operating Pressure
2275psi
Brakes
Service Brake
Hydraulic
Parking Brake
Mechanical
