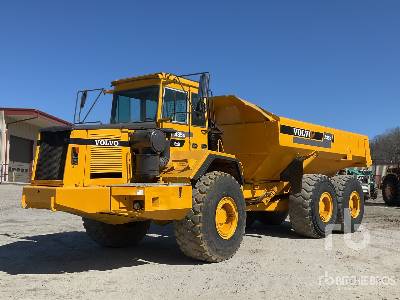

Volvo A25C 4X4 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
31.75ft in
B
Overall Width
8.21ft in
C
Overall Height
10.78ft in
D
Wheelbase
13.67ft in
E
Ground Clearance
1.71ft in
F
Dump Height
21ft in
G
Dump Ground Clearance
2.1ft in
Dump
H
Dump Angle
70degrees
Lower Time
10sec
Rated Payload
49604.01lb
Capacity - Struck
14.39yd3
Raise Time
12sec
Capacity - Heaped
18.05yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
TD 73 KCE
Gross Power
255hp
Net Power
251hp
Power Measured @
2400rpm
Max Torque
796.6lb ft
Torque Measured @
1200rpm
Aspiration
Turbocharged
Displacement
410.7cu in
Operational
Fuel Capacity
74gal
Hydraulic System Fluid Capacity
47.6gal
Cooling System Fluid Capacity
9.8gal
Engine Oil Capacity
6.4gal
Transmission Fluid Capacity
4.3gal
Operating Voltage
24V
Alternator Supplied Amperage
60amps
Tire Size
front 23.5R25 / rear 29.5R25
Transmission
Transmission Type
Fully automatic planetary transmission
Number Of Forward Gears
10
Number Of Reverse Gears
2
Max Speed
32.4mph
Weights
Front Axle - Empty
19929.8lb
Rear Axle - Empty
19246.4lb
Front Axle - Loaded
25353.2%
Rear Axle - Loaded
63427lb
Total Empty
39176.2lb
Total Loaded
88780.2lb
