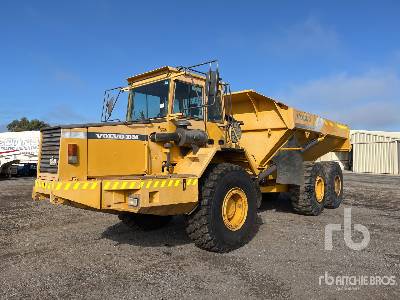

Volvo BM A20C 6x6 Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
31.19ft in
B
Overall Width
8.17ft in
C
Overall Height
10.59ft in
D
Wheelbase
13.78ft in
E
Ground Clearance
1.38ft in
F
Dump Height
19.82ft in
G
Dump Ground Clearance
1.97ft in
Dump
H
Dump Angle
63degrees
Lower Time
15sec
Rated Payload
44092lb
Capacity - Struck
12.3yd3
Raise Time
15sec
Capacity - Heaped
15.7yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
TD 71 KF
Gross Power
232hp
Net Power
228hp
Power Measured @
2400rpm
Max Torque
564.3lb ft
Torque Measured @
1800rpm
Aspiration
Turbocharged
Displacement
410.7cu in
Operational
Fuel Capacity
74gal
Hydraulic System Fluid Capacity
42.3gal
Cooling System Fluid Capacity
9.8gal
Engine Oil Capacity
6.4gal
Transmission Fluid Capacity
4.3gal
Operating Voltage
24V
Tire Size
20.5 R 25
Transmission
Transmission Type
Fully automatic planetary tansmission
Number Of Forward Gears
5
Number Of Reverse Gears
1
Max Speed
29.3mph
Weights
Front Axle - Empty
19180lb
Rear Axle - Empty
16975lb
Front Axle - Loaded
24030%
Rear Axle - Loaded
56217lb
Total Empty
36155lb
Total Loaded
80247lb
