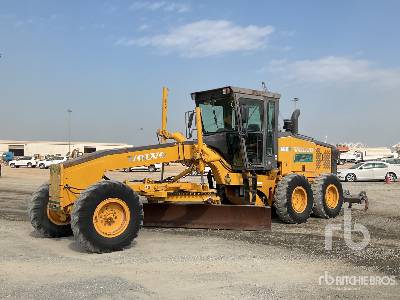

Volvo G720 Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
27.84ft in
B
Width Over Tires
8.34ft in
D
Wheelbase
20ft in
H
Blade Base
8.51ft in
Height To Top Of Isomount Cab
10.17ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
6C8.3
Max Power
160hp
Net Power Gears 7-8
160hp
Net Torque Gears 7-8
560lb ft
Displacement
504.7cu in
Aspiration
turbocharged
Operational
Std Operation Weight - Front Axle
9614.4lb
Std Operation Weight - Rear Axle
22961.2lb
Hydraulic System Fluid Capacity
23.8gal
Std Operation Weight - Total
32571.1lb
Fuel Capacity
102.4gal
Cooling System Fluid Capacity
12.5gal
Transmission Fluid Capacity
10.1gal
Rear Diff/Final Drive Fluid Capacity
6.1gal
Tandem Case Fluid Capacity (Each)
26.5gal
Operating Voltage
24V
Steering
Articulation Angle
72degrees
Turning Radius
25.5ft in
Transmission
Transmission Type
Volvo 8400
Number Of Gears - Forward
8
Number Of Gears - Reverse
4
Max Speed - Forward
28.4mph
Max Speed - Reverse
20.4mph
Front Axle
Wheel Lean
18degrees
Oscillation - Total
16degrees
Ground Clearance
2ft in
Moldboard
Moldboard Width
12ft in
Moldboard Height
25in
Moldboard Thickness
0.9in
Max Depth Of Cut
17.5in
Side Shift Left
26.5in
Side Shift Right
26.5in
Blade Pull At Max Weight
7853lb
Blade Down Pressure
16717lb
Hydraulic System
Pump Type
load sensing hydraulic
Pump Flow
50.5gal/min
Relief Valve Pressure
2500psi
Circle
Rotation
360degrees
Shift Left
30.5in
Shift Right
29.5in
Max Reach Outside Tires - Left
120in
Max Reach Outside Tires - Right
119.5in
Blade Tip Angle - Front
45degrees
Blade Tip Angle - Rear
6.5degrees
