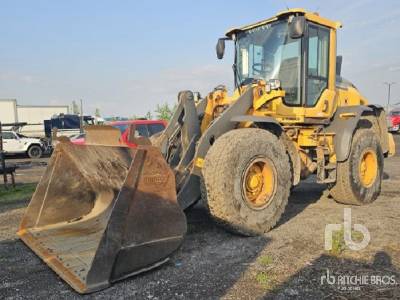

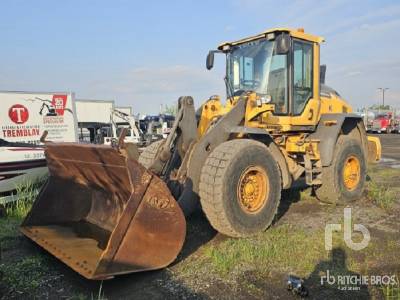

Volvo L70D Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
9.45ft in
Bucket Capacity - Heaped
2.49yd3
Bucket Width
8.21ft in
Breakout Force
19540lb
Dimensions
E
Ground Clearance
1.42ft in
A
Length With Bucket On Ground
23.36ft in
B
Width Over Tires
7.85ft in
C
Height To Top Of Cab
10.54ft in
D
Wheelbase
9.32ft in
F
Hinge Pin - Max Height
12.73ft in
H
Reach At Max Lift And Dump
3.15ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
TD 63 KGE
Net Power
122hp
Gross Power
128hp
Power Measured @
2200rpm
Max Torque
438.9lb ft
Displacement
334cu in
Torque Measured @
1100rpm
Aspiration
Turbocharged with Intercooler
Operational
Operating Weight
24980lb
Fuel Capacity
50.2gal
Hydraulic System Fluid Capacity
17.2gal
Engine Oil Fluid Capacity
4.3gal
Cooling System Fluid Capacity
10.6gal
Transmission Fluid Capacity
4.5gal
Front Axle/Diff Fluid Capacity
6.4gal
Rear Axle/Diff Fluid Capacity
6.4gal
Static Tipping Weight
19250lb
Turning Radius
18.3ft in
Operating Voltage
24V
Alternator Supplied Amperage
60amps
Rear Axle Oscillation
26degrees
Tire Size
20.5R25*L2
Transmission
Transmission Type
Volvo HT 90 countershaft-type
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
27.3mph
Max Speed - Reverse
27.3mph
Hydraulic System
Relief Valve Setting
3771psi
Pump Flow Capacity
42.3gal/min
Raise Time
5.4sec
Dump Time
1.1sec
Lower Time
3sec
Pump Type
double axial piston pump
