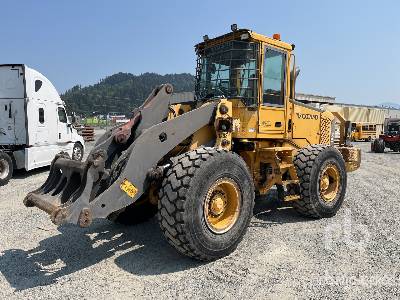

Volvo ZL502C Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
8.01ft in
Bucket Capacity - Heaped
1.05yd3
Bucket Width
5.75ft in
Breakout Force
_-
Dimensions
E
Ground Clearance
1.42ft in
A
Length With Bucket On Ground
16.51ft in
B
Width Over Tires
5.68ft in
C
Height To Top Of Cab
8.49ft in
D
Wheelbase
6.57ft in
F
Hinge Pin - Max Height
10.14ft in
H
Reach At Max Lift And Dump
2.43ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2349
Engine Model
F4 L 1011F
Net Power
54hp
Gross Power
56hp
Power Measured @
2800rpm
Max Torque
112.2lb ft
Displacement
166.6cu in
Torque Measured @
1800rpm
Aspiration
Natural
Operational
Operating Weight
9722.4lb
Fuel Capacity
15.9gal
Hydraulic System Fluid Capacity
15.9gal
Engine Oil Fluid Capacity
2.8gal
Front Axle/Diff Fluid Capacity
2.7gal
Rear Axle/Diff Fluid Capacity
3gal
Static Tipping Weight
7495.8lb
Turning Radius
13.4ft in
Operating Voltage
12V
Alternator Supplied Amperage
60amps
Rear Axle Oscillation
20degrees
Tire Size
12.5-18
Transmission
Transmission Type
hydrostatic
Number Of Forward Gears
2
Number Of Reverse Gears
2
Max Speed - Forward
12.5mph
Max Speed - Reverse
12.5mph
Hydraulic System
Relief Valve Setting
3335.9psi
Pump Flow Capacity
11.9gal/min
Raise Time
6sec
Dump Time
1sec
Lower Time
3sec
Pump Type
gear type
