Wacker Neuson 850 Wheel Loader
Units
Dimensions

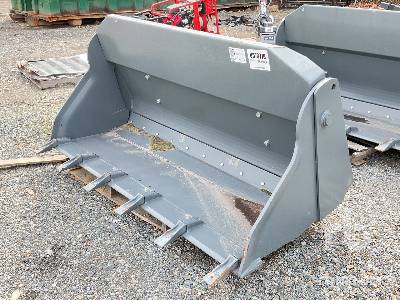

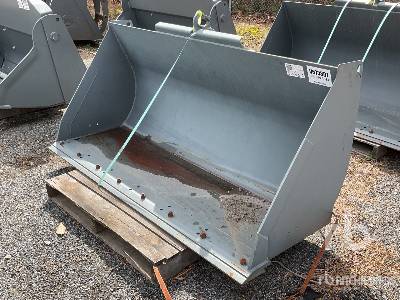

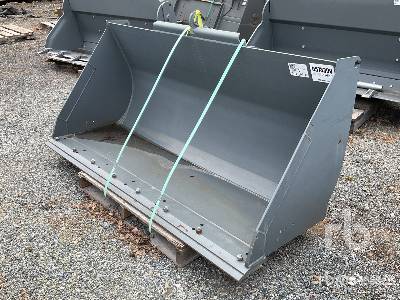

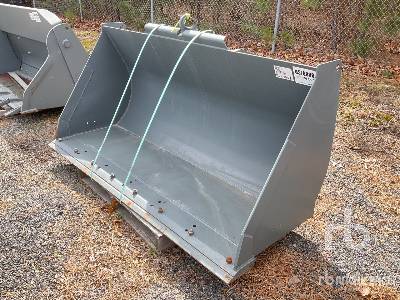

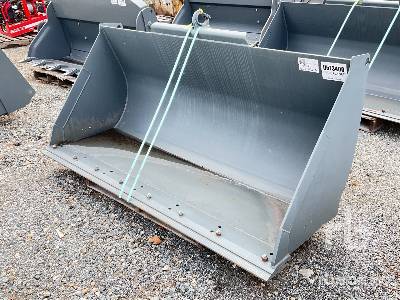

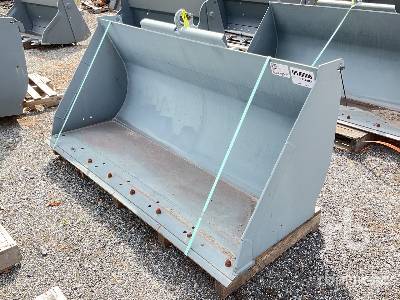

Bucket
G
Dump Clearance At Max Raise
8.21ft in
Bucket Capacity - Heaped
1.11yd3
Breakout Force
7868.3lb
Dimensions
A
Length With Bucket On Ground
16.54ft in
B
Width Over Tires
5.65ft in
C
Height To Top Of Cab
8.24ft in
D
Wheelbase
6.3ft in
F
Hinge Pin - Max Height
10.67ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
Deutz
Gross Power
60.3hp
Displacement
220.8cu in
Operational
Operating Weight
9920.7lb
Fuel Capacity
15.6gal
Hydraulic System Fluid Capacity
13.3gal
Static Tipping Weight
7054.8lb
Turning Radius
11.4ft in
Operating Voltage
12V
Alternator Supplied Amperage
95amps
Rear Axle Oscillation
22degrees
Tire Size
12.5 - 20
Transmission
Transmission Type
Continuously variable hydrostatic axial-piston gearbox
Max Speed - Forward
12.4mph
Hydraulic System
Relief Valve Setting
3046psi
Pump Flow Capacity
19.6gal/min
Raise Time
5.5sec
Dump Time
1.5sec
Lower Time
3.7sec
Pump Type
Gear pump
