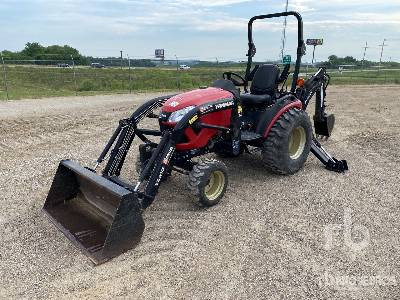

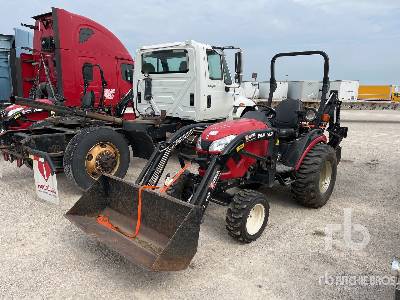

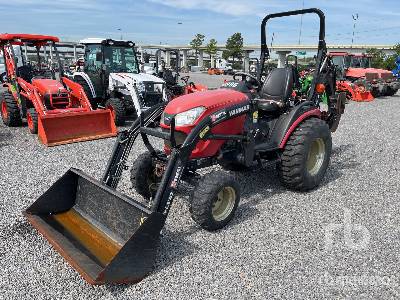

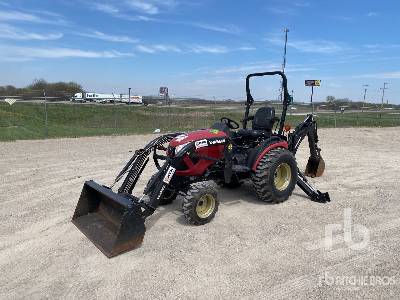

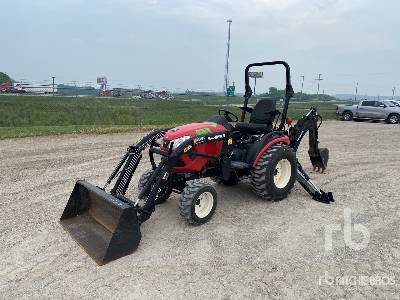

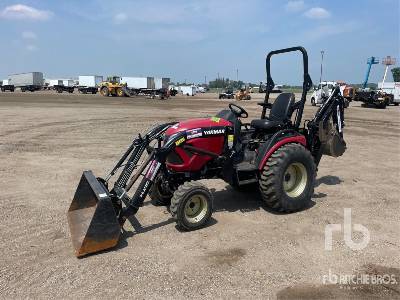

Yanmar SX3100 Utility Tractor
Units
Dimensions
Dimensions
A
Overall Length
109in
D
Wheelbase
65.2ft in
B
Overall Width
51.6ft in
E
Ground Clearance
10.6in
Weight
2030lb
Specifications
Engine
Number Of Cylinders
3
Gross Power
31.2hp
Net Power
30hp
Lubrication
Full pressure
Cooling System
Liquid cooled
Air Cleaner
Dual dry
Pto Power
23.5hp
Power Measured @
27500rpm
Displacement
100.2cu in
Bore
3.5in
Stroke
3.6in
Capacities
Fuel Tank
7.1gal
Cooling System
0.6gal
Transmission
4.6gal
Engine Oil
0.9gal
Operational
Tire Size Front - 2wd / 4wd
23 x 8.5 – 12 in
Rear Tires Size 2wd/4wd
14 – 17.5 in
Power Take-Off(Pto)
Pto Speed Rear
547rpm
Pto Type
Continuous live
Mid-Pto Speed
2100rpm
Transmission
Transmission Type
Synchronized shuttle
Max Speed
14.8mph
Hydraulic System
Hydraulic System Type
Open center
Pump Flow Capacity
4.8gal/min
3-Point Hitch
3-Point Hitch
Category 1
Lift Capacity @ 24”
1209lb
