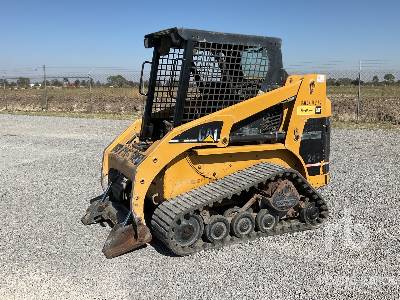

Caterpillar 247 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
5.5ft in
C
Height To Top Of Cab
6.53ft in
E
Ground Clearance
10.52in
G
Clearance At Max Lift And Dump
6.9ft in
H
Reach At Max Lift And Dump
2.09ft in
Length With Bucket
10.87ft in
Length With Out Bucket
8.27ft in
Turning Radius From Center - Inc Bucket
85.04in
Undercarriage
D
Length Of Track On Ground
4.92ft in
Width Of Track
15in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3034
Gross Power
58hp
Net Power
54hp
Power Measured @
2600rpm
Displacement
183cu in
Bore
3.9in
Stroke
4in
Engine Model
Cat 3034 naturally aspirated
Operational
Operating Weight
6629lb
Fuel Capacity
16.4gal
Hydraulic System Fluid Capacity
14.6gal
Max Speed - High Range
7.5mph
Power Train
Travel Speed Forward
7.5mph
Travel Speed Reverse
7.5mph
Loader
Operating Load
2100lb
Tipping Angle
3779degrees
Bucket Capacity
0.5yd3
Weights
Operating Weight
6665lb
Hydraulic
Pump Flow
14.4gal/min
Operating Specifications
Rated Operating Capacities - 50% Tipping Load
1993lb
Rated Operating Capacities - 35% Tipping Load
1354lb
Ground Contact Area
1770in2
Ground Pressure
3.8 psi
Tipping Load
3865lb
Breakout Force - Tilt Cylinder
3536lb
Breakout Force - Lift Cylinder
3011lb
Service Refill Capacities
Cooling System
2.6gal
Fuel Tank
17gal
Hydraulic Tank
9.2gal
Engine Crankcase
1.8gal
Hydraulic System
14.5gal
