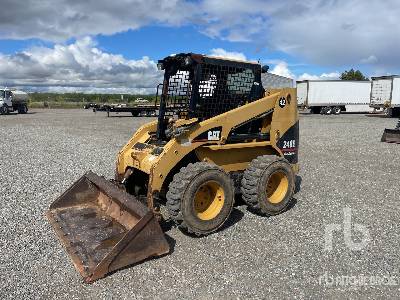

Caterpillar 248 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
11.54ft in
B
Width Over Tires
6.01ft in
E
Ground Clearance
9in
C
Height To Top Of Cab
6.87ft in
D
Wheelbase
3.73ft in
F
Length W/O Bucket
9.19ft in
G
Clearance At Max Lift And Dump
7.87ft in
H
Reach At Max Lift And Dump
23.39in
Wheel Base
3.73ft in
Bucket Pin Height - Carry Position
120in
Clearance At Maximum Lift And Dump
94in
Length - Without Bucket
110in
Bucket Pin Height - Maximum Lift
10.17ft in
Maximum Overall Height
156in
Height - Top Of Cab
6.75ft in
Bumper Overhang - Rear Axle
41in
Reach - Maximum Lift/Dump
21.3in
Turning Radius From Center - Inc Bucket
86.5in
Length - With Bucket On Ground
138in
Vehicle Width Over Tires
66in
Operating Specifications
Breakout Force - Tilt Cylinder
5261lb
Breakout Force - Lift Cylinder
4308lb
Rated Operating Capacity
2000lb
Rated Operating Capacity With Optional Counterweight
2100lb
Tipping Load
4000lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3034T
Gross Power
80hp
Net Power
74hp
Power Measured @
2600rpm
Displacement
183cu in
Bore
3.9in
Stroke
4in
Engine Model
Cat 3034C
Net Flywheel Power
55hp
Operational
Operational Weight
7530lb
Fuel Capacity
23.8gal
Max Speed
7.6mph
Hydraulic System Fluid Capacity
14.1gal
Operating Speed
7.6mph
Loader
Operating Load Rating
2000lb
Tipping Angle
3810degrees
Bucket Capacity
0.6yd3
Weights
Operating Weight
7338lb
Hydraulic
Pump Flow Capacity
33.1gal/min
Hydraulic System
Loader Hydraulic Pressure
4200 psi
Loader Hydraulic Flow
33 gal/min
Hydraulic Flow
Standard flow
Service Refill Capacities
Cooling System
2.6gal
Fuel Tank
23.8gal
Hydraulic Tank
9.2gal
Engine Crankcase
1.8gal
Hydraulic System
13.7gal
Chain Box - Each Side
2gal
Cab
Rops
SAE J1040 MAY94 and ISO3471:1994
Fops
SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
Fops Level Ii
SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
