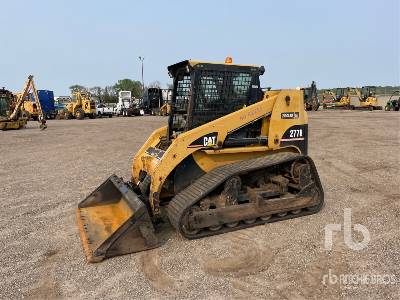

Caterpillar 277 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
6.23ft in
C
Height To Top Of Cab
6.81ft in
E
Ground Clearance
13.9in
G
Clearance At Max Lift And Dump
7.59ft in
H
Reach At Max Lift And Dump
2.22ft in
Length With Bucket
12.18ft in
Length With Out Bucket
9.59ft in
Turning Radius From Center - Inc Bucket
100.16in
Undercarriage
D
Length Of Track On Ground
6.71ft in
Width Of Track
17.72in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3034T
Gross Power
80hp
Net Power
74hp
Power Measured @
2600rpm
Displacement
183cu in
Bore
3.9in
Stroke
4in
Aspiration
Turbocharged
Engine Model
Cat 3034 Turbo Charged
Operational
Operating Weight
9226lb
Fuel Capacity
21.7gal
Hydraulic System Fluid Capacity
13.8gal
Max Speed - High Range
6.1mph
Power Train
Travel Speed Forward
6mph
Travel Speed Reverse
6mph
Loader
Operating Load
2950lb
Tipping Angle
6561degrees
Bucket Capacity
0.7yd3
Weights
Operating Weight
9126lb
Hydraulic
Pump Flow
22.2gal/min
Operating Specifications
Rated Operating Capacities - 50% Tipping Load
2950lb
Rated Operating Capacities - 35% Tipping Load
2065lb
Ground Contact Area
2898in2
Ground Pressure
3.1 psi
Tipping Load
5900lb
Breakout Force - Tilt Cylinder
5259lb
Breakout Force - Lift Cylinder
4339lb
Service Refill Capacities
Cooling System
2.6gal
Fuel Tank
22.7gal
Hydraulic Tank
9.2gal
Engine Crankcase
1.8gal
Hydraulic System
13.7gal
