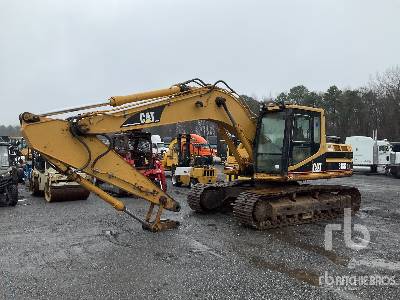

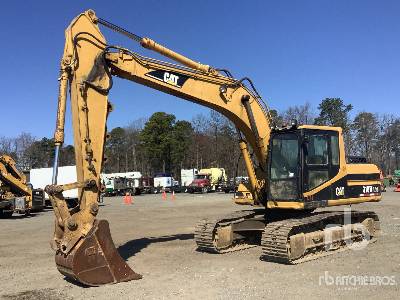

Caterpillar 317B LN Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
28.02ft in
J
Max Loading Height
19.59ft in
K
Max Reach Along Ground
26.25ft in
L
Max Vertical Wall Digging Depth
13.16ft in
M
Max Digging Depth
17.26ft in
Boom/Stick Option (Hex) 1
boom w/ stick 1850mm
Boom/Stick Option (Hex) 2
I
Max Cutting Height
28.02ft in
J
Max Loading Height
19.66ft in
K
Max Reach Along Ground
27.2ft in
L
Max Vertical Wall Digging Depth
13.65ft in
M
Max Digging Depth
18.57ft in
Boom/Stick Option (Hex) 2
boom w/ stick 2250mm
Boom/Stick Option (Hex) 3
I
Max Cutting Height
29.34ft in
J
Max Loading Height
20.84ft in
K
Max Reach Along Ground
28.55ft in
L
Max Vertical Wall Digging Depth
16.38ft in
M
Max Digging Depth
19.72ft in
Boom/Stick Option (Hex) 3
boom w/ stick 2600mm
Boom/Stick Option (Hex) 4
I
Max Cutting Height
295.28ft in
J
Max Loading Height
21.13ft in
K
Max Reach Along Ground
29.86ft in
M
Max Digging Depth
21.36ft in
Boom/Stick Option (Hex) 4
boom w/ stick 3100mm
Max Vertical Wall Dig Depth
16.93ft in
Dimensions
E
Ground Clearance
1.55ft in
G
Height To Top Of Cab
9.98ft in
B
Width To Outside Of Tracks
8.19ft in
D
Length Of Track On Ground
10.72ft in
H
Tail Swing Radius
8.04ft in
Removal Counterweight Clearance
3.38ft in
Undercarriage
F
Track Gauge
6.55ft in
N
Shoe Size
19.69in
Max Travel Speed
3.11mph
Drawbar Pull
34650lb
Specifications
Engine
Engine Model
3046T
Gross Power
109hp
Displacement
305.2cu in
Operational
Operating Weight
38140lb
Fuel Capacity
74gal
Hydraulic System Fluid Capacity
49.7gal
Hydraulic System Relief Valve Pressure
4970psi
Hydraulic Pump Flow Capacity
69.8gal/min
