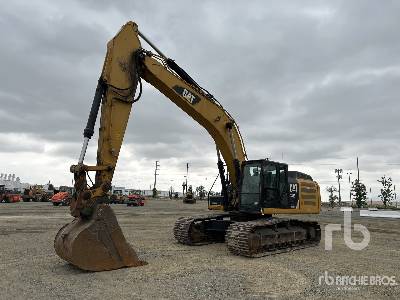

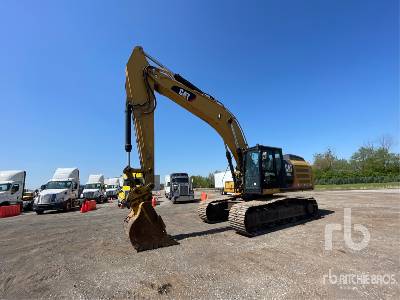

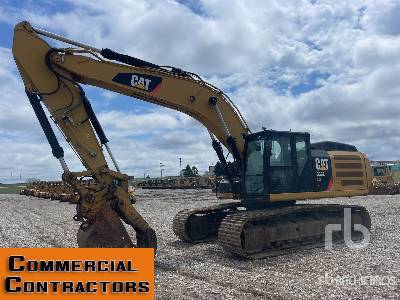

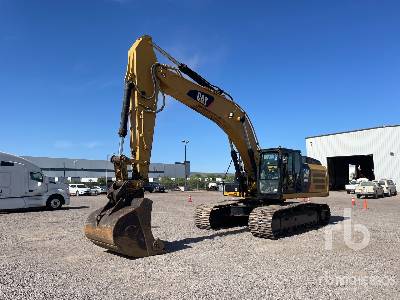

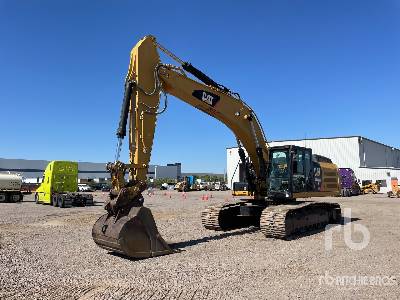

Caterpillar 336E L/LN Hydraulic Excavator
Units
Specifications
Engine
Displacement
567.6cu in
Bore
4.6in
Stroke
5.9in
Engine Model
Cat C9.3 (ATAAC)
Net Flywheel Power
305hp
Net Power - Iso 9249 - Metric
305hp
Net Power - Iso 9249 - Imperial
300hp
Power - Iso 14396 - Metric
321hp
Power - Iso 14396 - Imperial
316hp
Operational
Operating Weight
85288lb
Swing Mechanism
Swing Speed
9.2rpm
Swing Torque
80394lb ft
Weights
Maximum Weight
85288lb
Minimum Weight
79684lb
Hydraulic System
Pilot System - Maximum Flow
6.9 gal/min
Pilot System - Maximum Pressure
595 psi
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
4061 psi
Swing System - Maximum Flow
72.7 gal/min
Boom Cylinder - Bore
5.9in
Boom Cylinder - Stroke
56.7in
Stick Cylinder - Bore
6.7in
Stick Cylinder - Stroke
68.4in
Main System - Maximum Flow - Total
152.7 gal/min
Maximum Pressure - Equipment
5076 psi
Tb Family Bucket Cylinder - Stroke
53.4in
Tb Family Bucket Cylinder - Bore
6.3in
Maximum Pressure - Equipment - Heavy Lift
5511 psi
Db Family Bucket Cylinder - Bore
5.9in
Db Family Bucket Cylinder - Stroke
45.3in
Service Refill Capacities
Cooling System
14.8gal
Final Drive - Each
2.1gal
Fuel Tank Capacity
163.8gal
Swing Drive - Each
5gal
Engine Oil - With Filter
8.1gal
Hydraulic Tank Oil
51.3gal
Hydraulic System Oil Capacity - Including Tank
100.4gal
Standards
Cab - Rops
ISO 12117 2008
Brakes
ISO 10265 2008
Cab/Fogs
ISO 10262 1998
Sound Performance
Operator Sound Pressure Level - Iso 6396
72 dB(A)
Exterior Sound Power Level - Iso 6395
105 dB(A)
Track
Number Of Carrier Rollers - Each Side
2
Number Of Shoes - Each Side
49
Number Of Track Rollers - Each Side
9
Drive
Maximum Travel Speed
3.1mph
Maximum Drawbar Pull
66319lb
