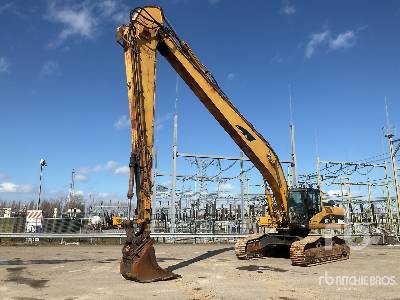

Caterpillar 345B L Series II Long Reach Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
48.99ft in
C
Shipping Height Of Unit
18.38ft in
I
Max Cutting Height
47.41ft in
J
Max Loading Height
38.16ft in
K
Max Reach Along Ground
57.75ft in
M
Max Digging Depth
40.1ft in
Boom/Stick Option (Hex) 1
Boom 10500mm / Stick 6000mm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
53.32ft in
I
Max Cutting Height
54.04ft in
C
Shipping Height Of Unit
12.31ft in
J
Max Loading Height
45.31ft in
K
Max Reach Along Ground
64.51ft in
M
Max Digging Depth
43.8ft in
Boom/Stick Option (Hex) 2
Boom 11500mm / Stick 8250mm
Dimensions
E
Ground Clearance
2.33ft in
G
Height To Top Of Cab
12.01ft in
B
Width To Outside Of Tracks
14.18ft in
D
Length Of Track On Ground
14.24ft in
H
Tail Swing Radius
11.98ft in
Removal Counterweight Clearance
4.89ft in
Undercarriage
F
Track Gauge
12.21ft in
N
Shoe Size
23.63in
Ground Pressure
13.08psi
Max Travel Speed
2.74mph
Drawbar Pull
74411.76lb
Specifications
Engine
Engine Make
2236
Engine Model
3176C ATAAC
Gross Power
345hp
Net Power
321hp
Power Measured @
2000rpm
Displacement
628.6cu in
Aspiration
Turbocharged
Operational
Operating Weight
113097.2lb
Fuel Capacity
190.3gal
Cooling System Fluid Capacity
17.5gal
Hydraulic System Fluid Capacity
137.4gal
Engine Oil Capacity
8gal
Operating Voltage
24V
Swing Drive Fluid Capacity
2.7gal
Alternator Supplied Amperage
70amps
Hydraulic System Relief Valve Pressure
4977.7psi
Hydraulic Pump Flow Capacity
190.3gal/min
Swing Mechanism
Swing Torque
109896.8lb ft
Swing Speed
8.6rpm
Buckets
Reference Bucket Capacity
2.3yd3
Minimum Bucket Capacity
1.8yd3
Maximum Bucket Capacity
2.3yd3
