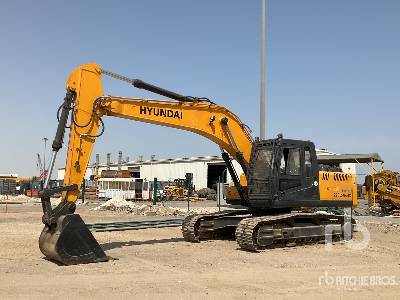

Hyundai R500LC-7A Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
40.16ft in
Shipping Height Of Unit
13.03ft in
Max Cutting Height
35.08ft in
Max Loading Height
23.86ft in
Max Reach Along Ground
35.77ft in
Max Vertical Wall Digging Depth
19.07ft in
Max Digging Depth
21.76ft in
Boom/Stick Option (Hex) 1
23'2 (7060mm) Boom / 7'10 (2400mm) Stick
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
39.9ft in
Max Cutting Height
34.91ft in
Shipping Height Of Unit
12.73ft in
Max Loading Height
24.05ft in
Max Reach Along Ground
37.11ft in
Max Vertical Wall Digging Depth
18.61ft in
Max Digging Depth
23.4ft in
Boom/Stick Option (Hex) 2
23'2 (7060mm) Boom / 9'6 (2900mm) Stick
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
39.31ft in
Max Cutting Height
36.49ft in
Max Loading Height
25.43ft in
Shipping Height Of Unit
12.05ft in
Max Reach Along Ground
38.95ft in
Max Vertical Wall Digging Depth
20.94ft in
Max Digging Depth
24.97ft in
Boom/Stick Option (Hex) 3
23'2 (7060mm) Boom / 11'1 (3380mm) Stick
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
39.44ft in
Shipping Height Of Unit
13.46ft in
Max Cutting Height
37.18ft in
Max Loading Height
26.12ft in
Max Reach Along Ground
40.82ft in
Max Digging Depth
27.01ft in
Boom/Stick Option (Hex) 4
23'2 (7060mm) Boom / 13'1 (4000mm) Stick
Max Vertical Wall Dig Depth
23.36ft in
Boom/Stick Option (Hex) 5
Shipping Length Of Unit
39.31ft in
Shipping Height Of Unit
14.9ft in
Max Cutting Height
38ft in
Max Loading Height
26.94ft in
Max Reach Along Ground
42.43ft in
Max Digging Depth
28.65ft in
Boom/Stick Option (Hex) 5
23'2 (7060mm) Boom / 14'9 (4500mm) Stick
Max Vertical Wall Dig Depth
24.64ft in
Boom/Stick Option (Hex) 6
Max Cutting Height
33.8ft in
Max Loading Height
22.64ft in
Shipping Length Of Unit
38.52ft in
Max Reach Along Ground
33.93ft in
Shipping Height Of Unit
13.46ft in
Max Digging Depth
20.18ft in
Boom/Stick Option (Hex) 6
21ft 6in \'2 (6550mm) Boom / 7\'10 (2400mm) Stick
Max Vertical Wall Dig Depth
17.23ft in
Dimensions
Ground Clearance
2.53ft in
Height To Top Of Cab
11.13ft in
Width To Outside Of Tracks
11.62ft in
Length Of Track On Ground
14.67ft in
Tail Swing Radius
12.21ft in
Removal Counterweight Clearance
4.93ft in
Undercarriage
Track Gauge
9.65ft in
Shoe Size
23.63in
Ground Pressure
11.94psi
Max Travel Speed
3.3mph
Drawbar Pull
82000lb
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
53
Number Of Carrier Rollers Per Side
3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
QSM11
Gross Power
357hp
Net Power
320hp
Power Measured @
1900rpm
Max Torque
1234lb ft
Displacement
659cu in
Aspiration
Turbocharged
Torque Measured @
1400rpm
Operational
Operating Weight
107580lb
Fuel Capacity
161.2gal
Cooling System Fluid Capacity
13.3gal
Hydraulic System Fluid Capacity
100.4gal
Operating Voltage
24V
Engine Oil Capacity
10.1gal
Swing Drive Fluid Capacity
1.4gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4690psi
Hydraulic Pump Flow Capacity
190.3gal/min
Swing Mechanism
Swing Speed
9rpm
Buckets
Reference Bucket Capacity
2.9yd3
Minimum Bucket Capacity
1.9yd3
Maximum Bucket Capacity
4.8yd3
