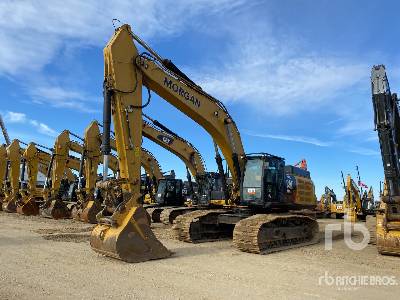

Caterpillar 349E Hydraulic Excavator
Units
Dimensions
Undercarriage
Number Of Carrier Rollers Per Side
2 or 3
Number Of Shoes Per Side
52
Number Of Track Rollers Per Side
9
Specifications
Engine
Engine Make
2236
Engine Model
C13 ACERT
Net Power
396hp
Gross Power
432hp
Displacement
763cu in
Bore
5.2in
Stroke
6.2in
Net Power - Sae J1349
396hp
Gross Power - Sae J1995
432hp
Engine Model
Cat C13 ACERT
Net Flywheel Power
396hp
Operational
Operating Weight
117500lb
Fuel Capacity
190gal
Cooling System Fluid Capacity
13.2gal
Hydraulic System Fluid Capacity
150.6gal
Engine Oil Capacity
11.4gal
Swing Drive Fluid Capacity
2.6gal
Swing Mechanism
Swing Torque
109500lb ft
Swing Speed
8.7rpm
Weights
Operating Weight
117500lb
Minimum Weight*
105400lb
Maximum Weight**
117500lb
Hydraulic System
Pilot System - Maximum Flow
7.1 gal/min
Pilot System - Maximum Pressure
598 psi
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
3989 psi
Swing System - Maximum Flow
102 gal/min
Boom Cylinder - Bore
6.7in
Boom Cylinder - Stroke
60in
Stick Cylinder - Bore
7.5in
Stick Cylinder - Stroke
69.3in
Main System - Maximum Flow - Total
203 gal/min
Maximum Pressure - Equipment
5076 psi
Maximum Pressure - Equipment - Lift Mode
5512 psi
Tb Family Bucket Cylinder - Stroke
53.4in
Tb Family Bucket Cylinder - Bore
6.3in
Ub Family Bucket Cylinder - Bore
6.7in
Ub Family Bucket Cylinder - Stroke
55in
Service Refill Capacities
Cooling System
13.2gal
Final Drive - Each
4gal
Hydraulic Tank
107.5gal
Hydraulic System - Including Tank
150.6gal
Fuel Tank Capacity
190gal
Swing Drive - Each
2.6gal
Engine Oil - With Filter
11.4gal
Standards
Cab - Rops
ISO 12117-2
Brakes
ISO 10265
Cab/Fogs
SAE J1356
Sound Performance
Operator Noise (Closed) - Iso 6396
71 dB(A)
Spectator Noise - Iso 6395
106 dB(A)
Track
Number Of Shoes - Each Side - Long Fix Undercarriage
52
Number Of Track Rollers - Each Side - Long Fix Undercarriage
9
Number Of Carrier Rollers - Each Side - Long Fix Undercarriage
2
Number Of Shoes - Each Side - Long Variable Gauge Undercarriage
52
Number Of Track Rollers - Each Side - Long Variable Gauge Undercarriage
9
Number Of Carrier Rollers - Each Side - Long Variable Gauge Undercarriage
3
Drive
Maximum Travel Speed
2.9mph
Maximum Drawbar Pull
75300lb
