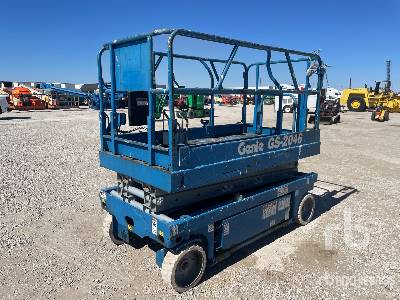

Genie GS2046 Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
7.91in
D
Wheelbase
6.07ft in
B
Overall Width
3.84ft in
C
Height W/ Rails
6.99ft in
E
Ground Clearance
3.94in
Height W/O Rails
5.09ft in
Turning Radius
7.52ft in
Platform
F
Max Platform Height
20.02ft in
I
Deck Extension
35.83in
Max Working Height
26.58ft in
Max Platform Weight Capacity
1199.32lb
Platform Inner Length
88.98in
Platform Inner Width
45.28in
Lower Time
33sec
Lift Time
30sec
Specifications
Engine
System Voltage
24V
Number Of Batteries
4
Operational
Operating Weight
3977.2lb
Hydraulic System Fluid Capacity
3.8gal
Max Speed
2.2mph
Tire Size
15x5x11
Tire Fill/Type
Solid non-marking
