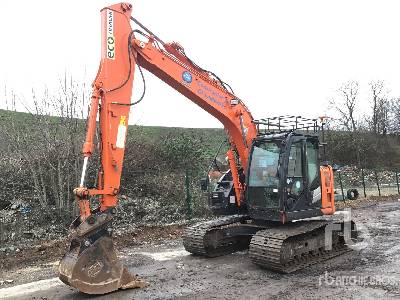

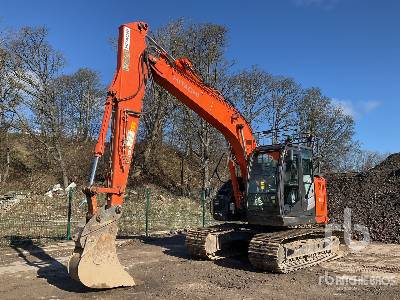

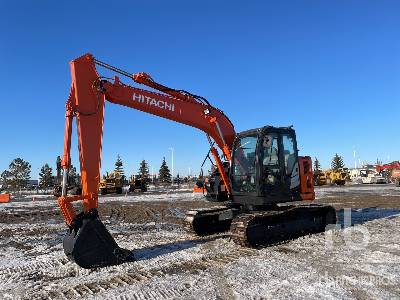

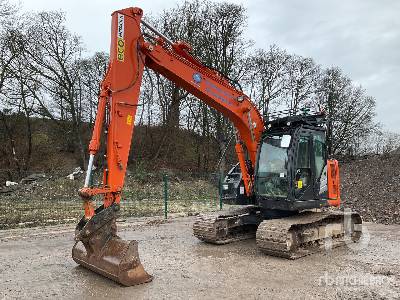

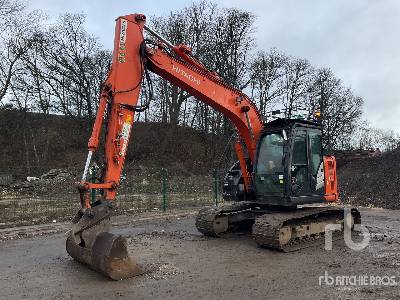

Hitachi ZX135US-6 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
30.48ft in
K
Max Reach Along Ground
27.04ft in
L
Max Vertical Wall Digging Depth
15.52ft in
M
Max Digging Depth
18.02ft in
Arm Digging Force - Sae
15062.2lb
Bucket Digging Force - Iso
23380.13lb
Bucket Digging Force - Sae
20457.62lb
Boom/Stick Option (Hex) 1
Arm Length - 2.52 m (8 ft 3in)
Max.Dumping Height
22.41ft in
Arm Digging Force - Iso
15511.82lb
Max Digging Reach
27.53ft in
Min.Front Swing Radius
6.93ft in
Boom/Stick Option (Hex) 2
I
Max Cutting Height
31.8ft in
K
Max Reach Along Ground
28.61ft in
L
Max Vertical Wall Digging Depth
17.03ft in
M
Max Digging Depth
19.62ft in
Arm Digging Force - Iso
13713.35lb
Arm Digging Force - Sae
13488.54lb
Boom/Stick Option (Hex) 2
Arm Length - 3.01 m (9 ft 2 in)
Bucket Digging Force - Iso
23380.13lb
Bucket Digging Force - Sae
20457.62lb
Max Digging Reach
29.07ft in
Max.Dumping Height
23.69ft in
Minimum Swing Radius
96.46in
Boom/Stick Option (Hex) 3
Boom/Stick Option (Hex) 3
Arm Length - 3.61 m (11 ft 10 in)
Dimensions
E
Ground Clearance
1.35ft in
O
Counterweight Clearance
2.76ft in
Max. Height
109.85in
Cab Height
9.42ft in
Undercarriage Overall Length
11.75ft in
Length
2901.58in
Undercarriage
Number Of Track Rollers Per Side
7
Number Of Carrier Rollers Per Side
1
Number Of Shoes Per Side
44
Max Travel Speed
3.42mph
Drawbar Pull
11216lb
Specifications
Electrical System
Battery Capacity
3000CCA
Alternator Rating
50 amp
Batteries
2
Work Lights
2 halogen
Cylinders
Bore (Boom)
4.2in
Stroke (Boom)
37.1in
Rod Diameter (Boom)
2.8in
Bore (Arm)
4.6in
Stroke (Arm)
3.2in
Rod Diameter (Arm)
2.8in
Bore (Bucket)
4in
Stroke (Bucket)
2.8in
Rod Diameter (Bucket)
34.5in
Engine
Emissions Level
EPA Final Tier 4 / EU Stage IV
Number Of Cylinders
4
Off-Level Capacity
70%
Engine Make
Isuzu
Engine Model
4JJ1
Net Power
101hp
Cooling System
Direct-drive, suction-type fan
Power Measured @
2000rpm
Aspiration
Turbocharged and charged air cooled
Displacement
183.1cu in
Capacities
Engine Oil With Filter
4.5gal
Swing Drive
0.9gal
Fuel Tank
58.2gal
Hydraulic Tank
15.9gal
Diesel Exhaust Fluid (Def) Tank
3.2gal
Cooling System
5.6gal
Hydraulic System
41gal
Propel
1.1gal
Operational
Operating Weight
30644.3lb
Swing Mechanism
Swing Torque
25077.2lb ft
Swing Speed
13.3rpm
Hydraulic System
Main Pump Type
2 variable-displacement axial-piston pumps
Implement - Operating Pressure
4975psi
Travel - Operating Pressure
5047psi
Swing - Operating Pressure
4685psi
Power Boost - Operating Pressure
5265psi
Controls
Pilot levers
