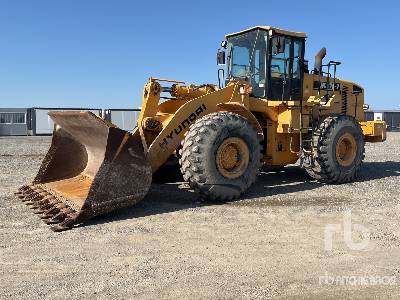

Hyundai HL740-9A Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
9.14ft in
Breakout Force
24800lb
Bucket Capacity - Heaped
3.01yd3
Bucket Capacity - Struck
2.62yd3
Dimensions
E
Ground Clearance
1.37ft in
A
Length With Bucket On Ground
24.1ft in
C
Height To Top Of Cab
10.7ft in
D
Wheelbase
9.52ft in
H
Reach At Max Lift And Dump
3.37ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
CUMMINS
Engine Model
QSB6.7
Net Power
156hp
Air Cleaner
Dry, Two stages dual elements
Gross Power
158hp
Torque
591lb ft
Power Measured @
2100rpm
Displacement
408.9cu in
Aspiration
Turbocharged,
Bore
4.3in
Stroke
4.9in
Operational
Operating Weight
28000lb
Fuel Capacity
58.2gal
Hydraulic System Fluid Capacity
45.5gal
Cooling System Fluid Capacity
9gal
Transmission Fluid Capacity
6.7gal
Front Axle/Diff Fluid Capacity
6.4gal
Rear Axle/Diff Fluid Capacity
6.1gal
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Tire Size
20.5-25, L3
Transmission
Transmission Type
Full automatic power shift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
24.5mph
Max Speed - Reverse
25.3mph
Hydraulic System
Raise Time
5.5sec
Dump Time
1.1sec
Lower Time
3sec
Pump Type
Variable axial piston type,
