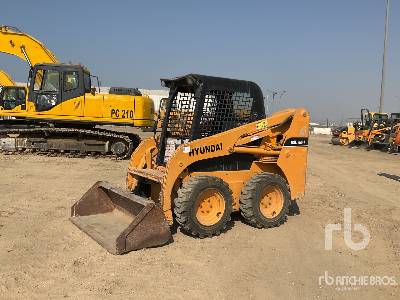

Hyundai HSL1200T Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
12.17ft in
B
Width Over Tires
5.9ft in
E
Ground Clearance
9.02in
C
Height To Top Of Cab
7.01ft in
D
Wheelbase
4.07ft in
F
Length W/O Bucket
9.8ft in
G
Clearance At Max Lift And Dump
8.07ft in
H
Reach At Max Lift And Dump
25.32in
Turning Radius From Center - Machine Rear
69.81in
Turning Radius From Center - Inc Bucket
84.02in
Specifications
Engine
Engine Make
2334
Engine Model
V3300T
Gross Power
87.4hp
Net Power
83hp
Power Measured @
2700rpm
Operational
Operational Weight
8000.6lb
Fuel Capacity
28.8gal
Hydraulic System Fluid Capacity
35.1gal
Operating Speed
6.8mph
Tire Size
12x16.5
Loader
Operating Load Rating
2500.1lb
Tipping Angle
5000.1degrees
Hydraulic
Pump Flow Capacity
21.1gal/min
Relief Valve Pressure
3000psi
